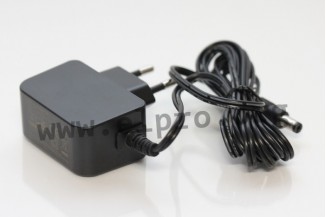

HN-Power plug-in power supply series HNP15-L6

Plug-in switching power supplies in a compact housing with 15W, a europlug, energy efficiency Level VI, a universal input and insulation class II. These devices are protected against overload as well as short circuit and comply with EN60950-1, EN55032, EN55024, EN55020, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this HN-Power series: HNP15-050-L6, HNP15-090-L6 and HNP15-120-L6.

• single output
• output: 15W
• input voltage: 90 to 264V AC (47 to 63Hz)
• maximal input inrush current: 30A
• no-load power: <0,075W
• cable length: 1,5m
• output plug: 2,1x5,5mm
• operating temperature: -10 to +40°C
• weight: 78g
