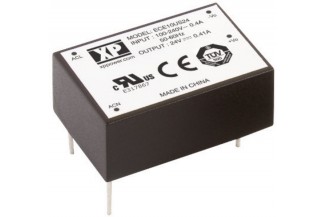

XP Power power supply series ECE10

Enclosed type switching power supplies with 10W, protection class II and a universal input. These devices have a low no-load power consumption and are suitable for PCB mounting. They are protected against overload, short circuit as well as overvoltage and comply with IEC60950-1, IEC62368-1, UL62368-1, EN62368-1 as well as EN55032 class B. We offer the following types of this XP Power series: ECE10US03, ECE10US05, ECE10US12 and ECE10US24.

• single output
• output: 10W
• input voltage: 85 to 264V AC (47 to 63Hz)
• maximal input inrush current: 20A
• input current: 0,2A
• no-load power consumption: <0,3W
• operating temperature: -25 to +70°C
• withstand voltage I/P-O/P: 4000V AC
• connection type: THT
• dimensions: 38,1x25,4x15,24mm
• weight: 16g
