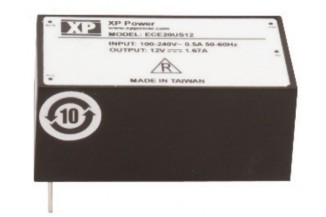

XP Power power supply series ECE20

Enclosed type switching power supplies with 20W, a universal input and protection class II. These devices are suitable for PCB mounting and have a low no-load power consumption. They are protected against overvoltage, short circuit as well as overload and comply with IEC60950-1, IEC62368-1, UL62368-1, EN62368-1 as well as EN55032 class B. We offer the following types of this XP Power series: ECE20US03, ECE20US05, ECE20US12 and ECE20US24.

• single output
• output: 20W
• input voltage: 85 to 264V AC (47 to 63Hz)
• maximal input inrush current: 40A
• input current: 0,3A
• no-load power consumption: <0,3W
• operating temperature: -25 to +70°C
• withstand voltage I/P-O/P: 3000V AC
• connection type: THT
• dimensions: 52,4x27,2x23mm
• weight: 60g
