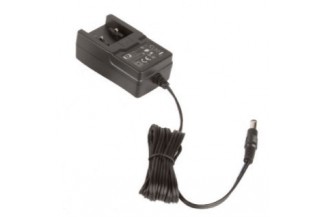

XP Power plug-in power supply series ACM06

Plug-in switching power supplies with 6W, a universal input, protection class II and energy efficiency Level VI (EU 2019/1782). These devices are suitable for medical technology applications (2xMOPP) and are protected against short circuit, overload as well as overvoltage. They have interchangeable AC plugs (must be ordered separately) and comply with UL60950-1, UL62368-1, EN60950-1, EN62368-1, IEC60950-1, IEC62368-1, ANSI/AAMI ES60601-1, EN55032 class B, IEC60601-1-2, EN61204-3 as well as EN60601-1-2. We offer the following types of this XP Power series: ACM06US05 and ACM06US12.

• single output
• output: 6W
• input voltage: 90 to 264V AC (47 to 63Hz)
• maximal input inrush current: 70A
• output voltage tolerance: 5%
• input current: 0,2A
• leakage current: 100µA
• operating temperature: 0 to +60°C
• withstand voltage: 4000V AC
• output plug: coaxial 2,5x5,5mm
• dimensions: 73,5x42,5x30,7mm
• weight: 100g

Matching input plugs
