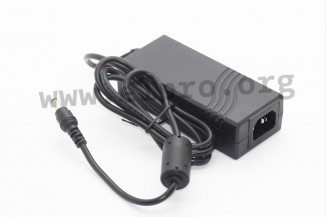

XP Power desktop power supply series VEC65

Desktop switching power supplies with 65W, a universal input, protection class I and energy efficiency Level VI (EU 2019/1872). These devices are protected against overload, overvoltage as well as short circuit and comply with UL60950-1, UL62368-1, EN60950-1, EN62368-1, IEC60950-1, IEC62368-1 as well as EN55032 class B. We offer the following types of this XP Power series: VEC65US12, VEC65US19 and VEC65US24.

• single output
• output: 65W
• input voltage: 90 to 264V AC (47 to 63Hz)
• maximal input inrush current: 110A
• output voltage tolerance: 5%
• input current: 0,9A
• leakage current: 700µA
• operating temperature: 0 to +60°C
• withstand voltage I/P-O/P: 3000V AC
• withstand voltage I/P-FG: 1500V AC
• input plug: C14
• output plug: 2,5x5,5mm
• dimensions: 116,3x52,4x31,3mm
• weight: 270g
