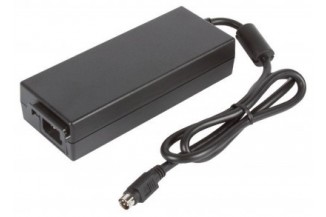

XP Power desktop power supply series ALM150

Desktop switching power supplies with 150W, a universal input, protection class I and energy efficiency Level VI (EU 2019/1872). These devices are suitable for medical technology applications (2xMOPP) and are protected against overvoltage, short circuit as well as overload. They are IP32 rated and comply UL62368-1, EN62368-1, IEC60950-1, IEC62368-1, ANSI/AAMI ES60601-1, EN60601-1, IEC60601-2, EN55032 class B as well as EN60601-1-2. We offer the following types of this XP Power series: ALM150PS19 and ALM150PS24.

• single output
• output: 150W
• input voltage: 80 to 264V AC (47 to 63Hz)
• maximal input inrush current: 160A
• output voltage tolerance: 5%
• input current: 0,9A
• leakage current: 250µA
• operating temperature: 0 to +60°C
• withstand voltage I/P-O/P: 4000V AC
• withstand voltage I/P-FG: 1500V AC
• withstand voltage O/P-FG: 500V AC
• input plug: C14
• output plug: DIN 4 Pin
• dimensions: 186x72x38mm
• weight: 635g
