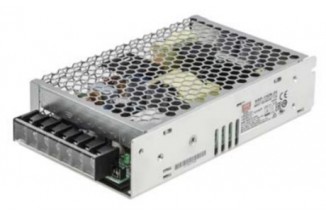

Mean Well power supply series HRP-150N

Switching power supplies in an enclosed housing with 150W, screw terminals, a universal input and a high efficiency. These devices are suitable for applications that require a high start-up current such as motor applications as they are able to supply a peak power of 250% over a period of 5 seconds. They are cooled by free air convection, have a built-in active PFC function, are protected against overvoltage, short circuit, overtemperature as well as overload and comply with UL62368-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HRP-150N-12, HRP-150N-24, HRP-150N-36 and HRP-150N-48.

  • single output
  • output: 154,8 to 158,4W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • dimensions: 159x97x38mm
  • weight: 540g
