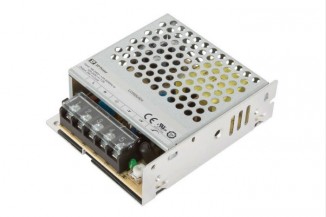

XP Power power supply series LCS50

Switching power supplies in an enclosed housing with 50W, a universal input, a low no-load power and protection class I. These devices have an integrated connector cover and comply with EN62368-1, EN60335-1, EN61558-1 as well as EN55032 class B. They have a fanless design and are protected against overload, overvoltage as well as short circuit. We offer the following types of this XP Power series: LCS50US05, LCS50US12, LCS50US15 and LCS50US24.

• single output
• output: 50 to 53W
• input voltage: 85 to 264V AC (47 to 63Hz)
• input current: 0,8A
• maximal input inrush current: 50A
• leakage current: 0,75mA
• no-load power: <0,3W
• withstand voltage I/P-O/P: 4000V AC
• withstand voltage I/P-FG: 2000V AC
• withstand voltage O/P-FG: 1250V AC
• connection type: screw terminal
• operating temperature: -30 to +70°C
• dimensions: 99x82x30mm
• weight: 180g
