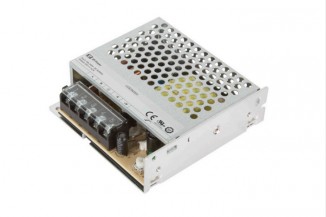

XP Power power supply series LCS75

Switching power supplies in an enclosed housing with 75W, protection class I, a universal input and a low no-load power. These devices are protected against overload, overvoltage as well as short circuit and comply with EN62368-1, EN60335-1, EN61558-1 as well as EN55032 class B. They have a fanless design and an integrated connector cover. We offer the following types of this XP Power series: LCS75US05, LCS75US12, LCS75US15 and LCS75US24.

• single output
• output: 70 to 77W
• input voltage: 85 to 264V AC (47 to 63Hz)
• input current: 1A
• maximal input inrush current: 65A
• leakage current: 0,75mA
• no-load power: <0,3W
• withstand voltage I/P-O/P: 4000V AC
• withstand voltage I/P-FG: 2000V AC
• withstand voltage O/P-FG: 1250V AC
• connection type: screw terminal
• operating temperature: -30 to +70°C
• dimensions: 99x97x30mm
• weight: 220g
