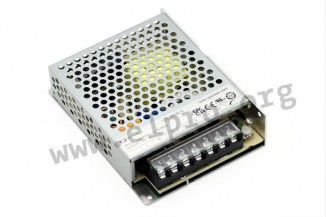

XP Power power supply series LCS100

Switching power supplies in an enclosed housing with 100W, a universal input, a low no-load power and protection class I. These devices have a fanless design, are very efficient and are protected against overload, overvoltage as well as short circuit. They have an integrated connector cover and comply with EN62368-1, EN61558-1, EN60335-1 as well as EN55032 class B. We offer the following types of this XP Power series: LCS100US05, LCS100US12, LCS100US15, LCS100US24 and LCS100US48.

• single output
• output: 90 to 110W
• input voltage; 85 to 264V AC (47 to 63Hz)
• input current: 1,5A
• maximal input inrush current: 65A
• leakage current: 0,75mA
• no-load power: <0,3W
• withstand voltage I/P-O/P: 4000V AC
• withstand voltage I/P-FG: 2000V AC
• withstand voltage O/P-FG: 1250V AC
• connection type: screw terminal
• operating temperature: -30 to +70°C
• dimensions: 129x97x30mm
