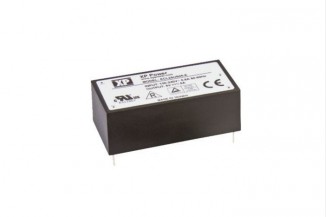

XP Power power supply series ECL05

Switching power supplies in an enclosed housing with 5W, protection class II and a universal input. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1 as well as EN55032 class B. We offer the type ECL05US05-E of this XP Power series.

• single output
• output: 5W
• input voltage: 85 to 264V AC (47 to 63Hz)
• input current: 0,1A
• maximal input inrush current: 40A
• no-load power: <0,3W
• withstand voltage: 3000V AC
• connection type: THT
• operating temperature: -20 to +70°C
• dimensions: 52,4x27,2x23mm
• weight: 60g
