KDA-64

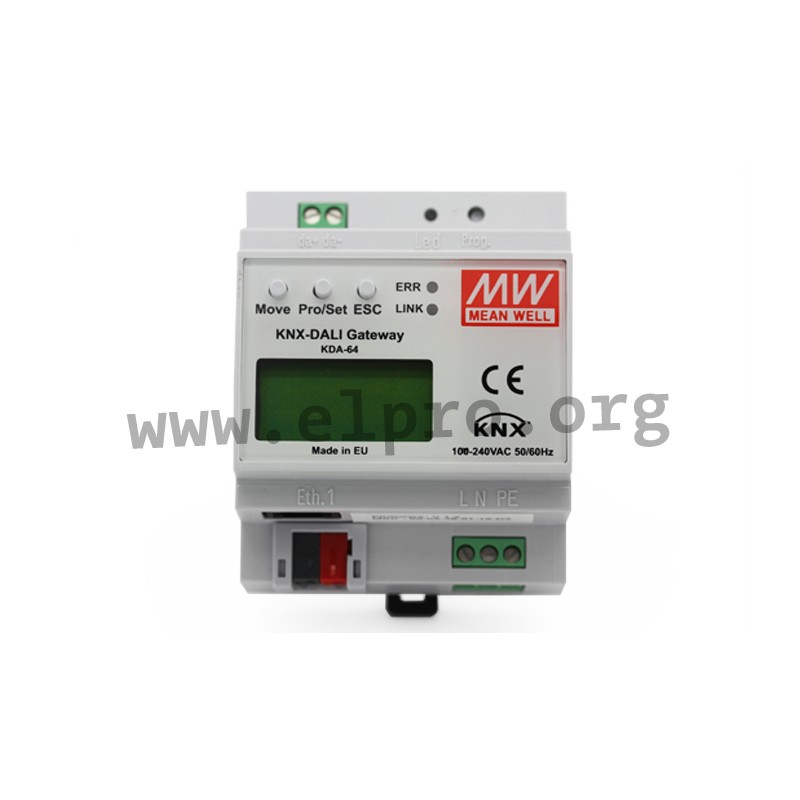

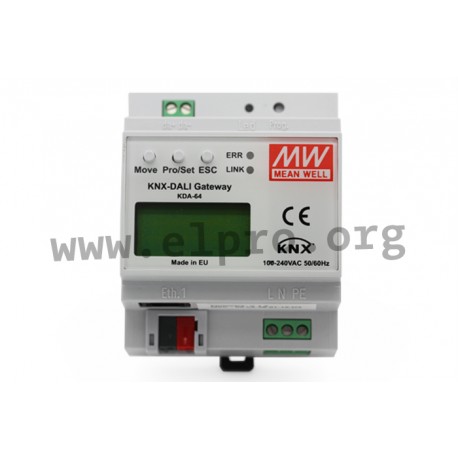

Mean Well KNX-DALI Gateway series KDA-64

Gateways with an LCD 2x12 display, a built-in DALI power supply and a KNX interface. These devices unite the crossfunctional KNX installation bus and the lighting control specific DALI-Bus (IEC 60929) and are protected against overload. They are suitable for up to 64 DALI ECGs/drivers and comply with EN62368-103, EN50491-5-1, EN60669-2-1, EN50428, EN50090-2-2 as well as EN61000-3-3. Lighting control by buttons or by the integrated web server and up to 16 DALI lighting groups setting as well as up to 16 DALI scenes setting. We offer the type KDA-64 of this Mean Well series.

  • input voltage: 110 to 240V AC (50 to 60Hz), 155 to 339V DC
  • input current: 0,1A
  • operating temperature: -5 to +45°C
  • weight: 200g
KDA-64

KDA-64

105462 KDA-64 KDA-64 Mean Well KNX-DALI Gateway series KDA-64. Gateways with an LCD 2x12 display, a built-in DALI power supply and a KNX interface. These devices unite the crossfunctional KNX installation bus and the lighting control specific DALI-Bus (IEC 60929) and are protected against overload. They are suitable for up to 64 DALI ECGs/drivers and comply with EN62368-103, EN50491-5-1, EN60669-2-1, EN50428, EN50090-2-2 as well as EN61000-3-3. Lighting control by buttons or by the integrated web server and up to 16 DALI lighting groups setting as well as up to 16 DALI scenes setting. We offer the type KDA-64 of this Mean Well series. input voltage: 110 to 240V AC (50 to 60Hz), 155 to 339V DC input current: 0,1A operating temperature: -5 to +45°C weight: 200g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name KDA-64
Data Sheet

Unit price

456,79 €

Stock: 2
