DF 01 M 2A

Taiwan Semiconductor rectifier series DBL

  • bridge rectifiers
  • glass passivated
  • in a DIL housing
  • suitable for PCB mounting
  • comply with AEC-Q101
  • operating temperature: -55 to +150°C
  • maximal solderability: 260°C (10s)
  • forward current: 2A

DF 01 M 2A

1941 DF 01 M 2A DBL202G DBL202G Taiwan Semiconductor rectifier series DBL. bridge rectifiers glass passivated in a DIL housing suitable for PCB mounting comply with AEC-Q101 operating temperature: -55 to +150°C maximal solderability: 260°C (10s) forward current: 2A

Specifications

manufacturer
Manufacturer's name DBL202G

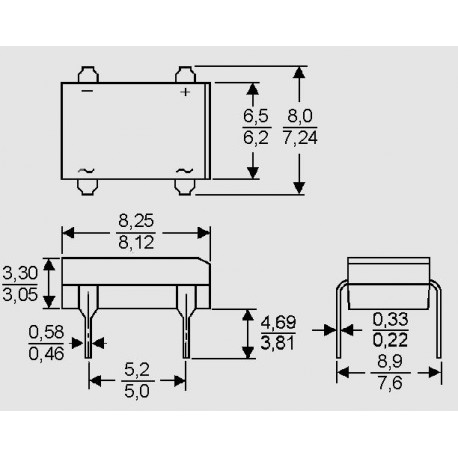

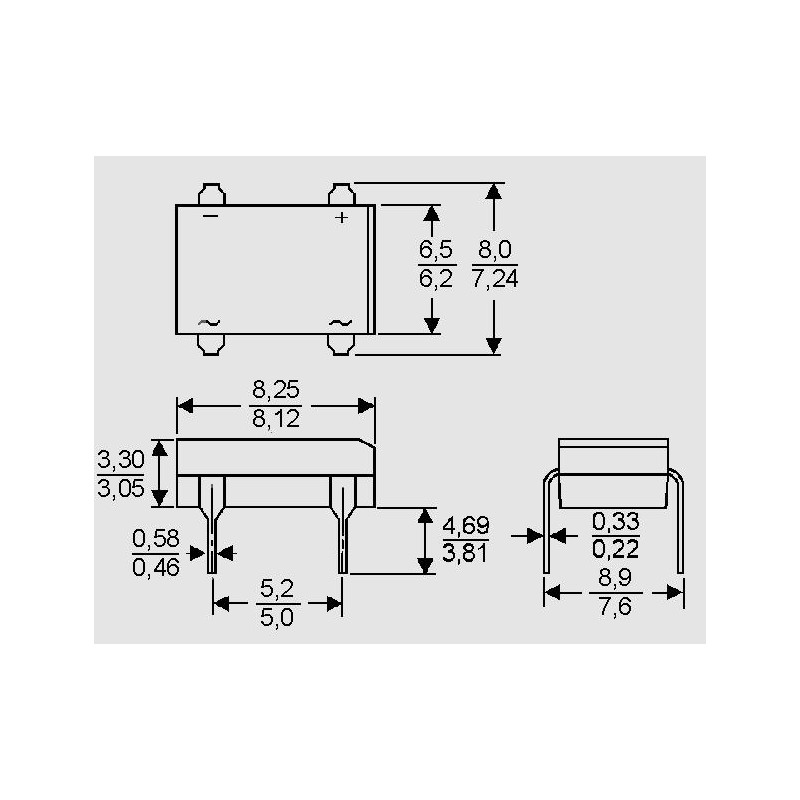

Case Dual-In-Line...
(Max.) peak recurrent reverse voltage [V] 100
Forward voltage [V] 1,15
(Max.) average forward (rectified) current [A] 2
Reverse current [µA] 10
(Max.) RMS voltage [V] 70
Data Sheet

Unit price

1,78 €

Volume discounts

Quantity Unit price
25 + 0,265 €

Stock: 2850
