SM 4003 SMD

Taiwan Semiconductor SMD Si-rectifier diode series LL40

  • SMD Si-rectifier diodes
  • in a Melf housing
  • glasspassivated
  • comply with UL94V-0
  • solderability: 260°C/10s
  • forward current: 1A

SM 4003 SMD

612 SM 4003 SMD LL4003G L0G LL4003G L0G Taiwan Semiconductor SMD Si-rectifier diode series LL40. SMD Si-rectifier diodes in a Melf housing glasspassivated comply with UL94V-0 solderability: 260°C/10s forward current: 1A

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name LL4003G L0G

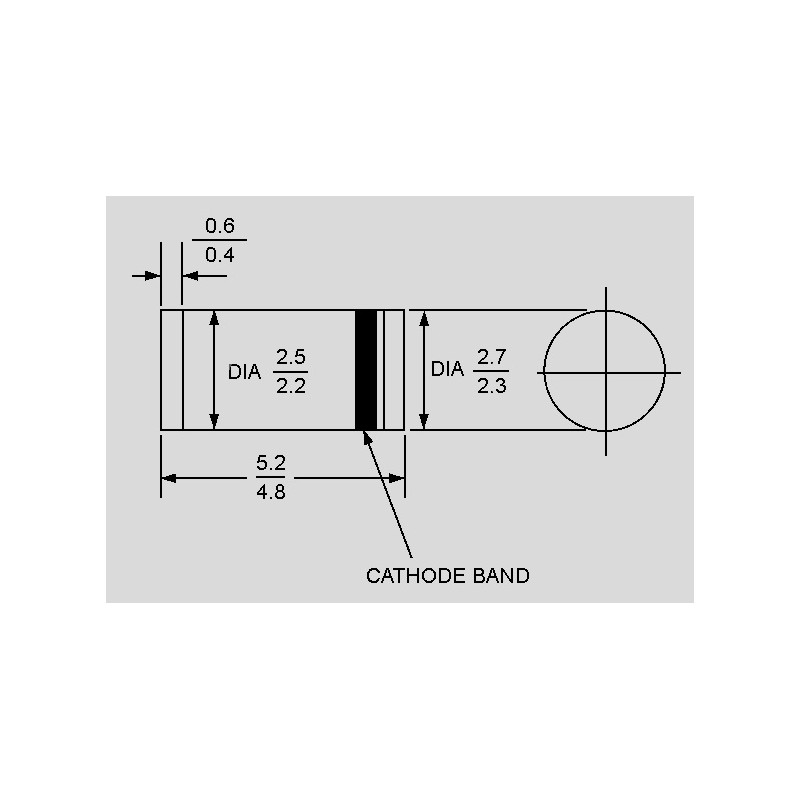

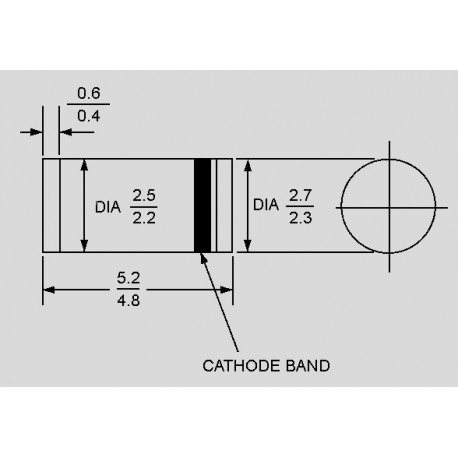

Case Melf
Operating temperature range [°C] -65...+150
(Max.) peak recurrent reverse voltage [V] 200
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 1
Reverse current [µA] 5
Data Sheet

Unit price

0,091 €

Stock: 3500
Next incoming goods:
CW 46/2022
5000 units

Minimum order quantity 100 units or
multiples of 100.
