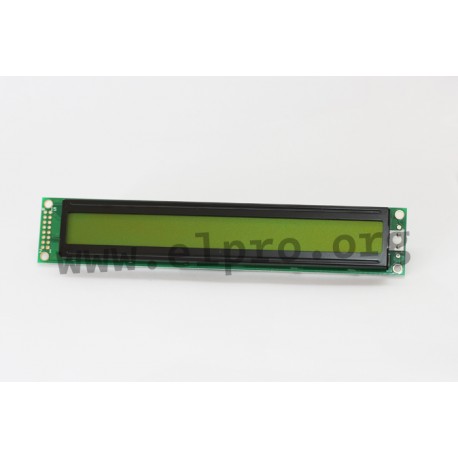

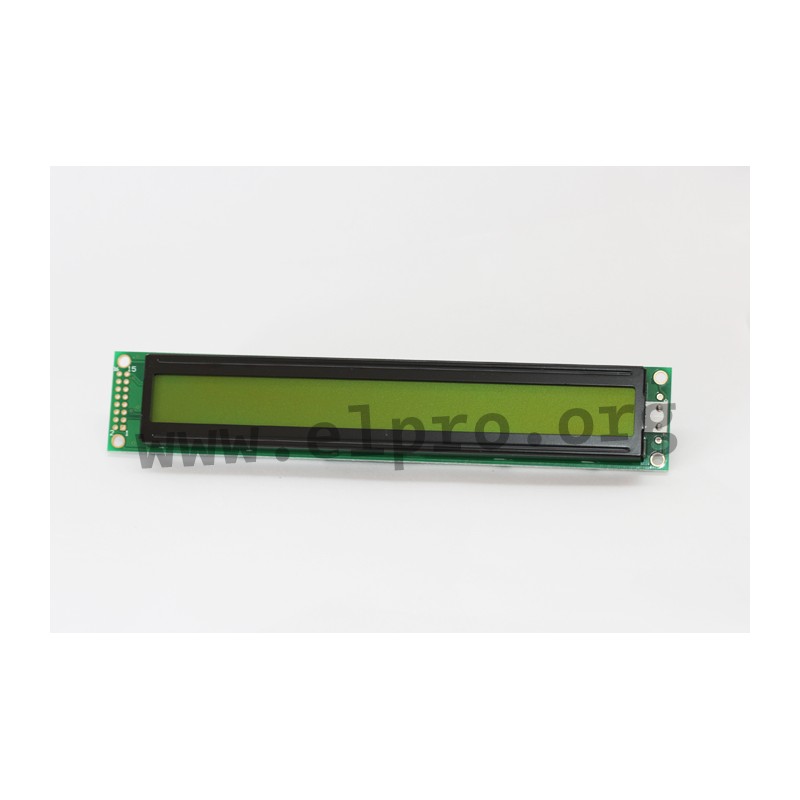

DEM 20121 SYH-LY

LCD dot matrix modules

• dot matrix modules with 1 line and 20 characters
​• high contrast LCD-STN display
• LED backlight
• characters: black
• by Display Elektronik
• interface for 4- or 8-Bit data bus
• supply voltage: 5V
• operating temperature range: -20 to +70°C

DEM 20121 SYH-LY

DEM 20121 SYH-LY

36409 DEM 20121 SYH-LY DEM20121SYH-LY DEM20121SYH-LY LCD dot matrix modules. • dot matrix modules with 1 line and 20 characters​• high contrast LCD-STN display• LED backlight• characters: black• by Display Elektronik• interface for 4- or 8-Bit data bus• supply voltage: 5V• operating temperature range: -20 to +70°C

Specifications

manufacturer
Manufacturer's name DEM20121SYH-LY
Character size [mm] 6,7x9,4
Background yellow/green
Illumination yellow
Lines 1
Characters 20
Field of view [mm] 155,1x16
Dimensions [mm] 182x33,5x14,5
Data Sheet

Unit price

26,59 €

Stock: 11
Further delivery:
CW 52/2025
