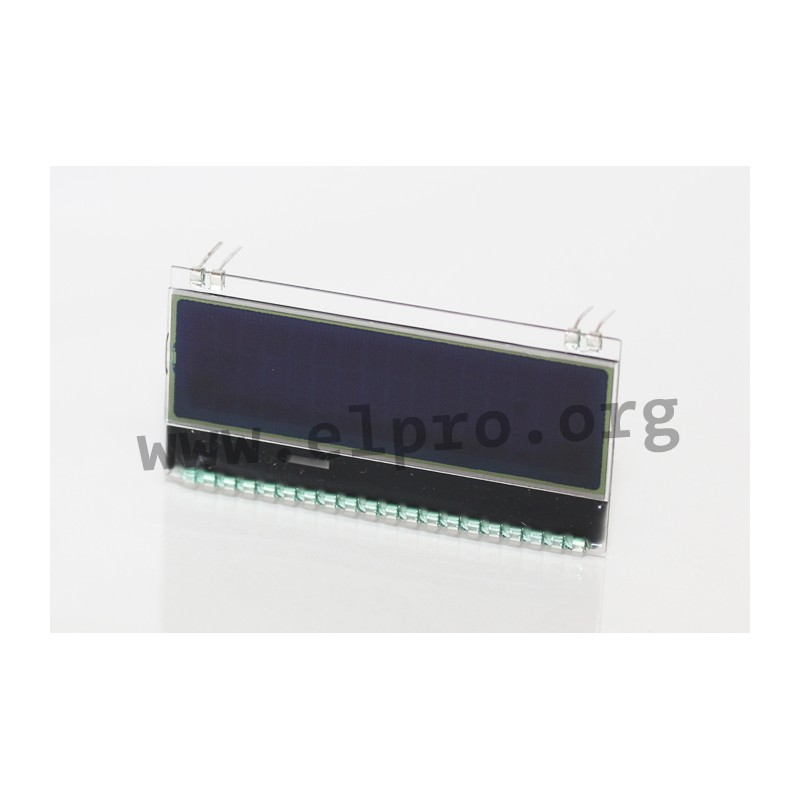

EA DOGM163S-A

LCD dot matrix modules

• dot matrix modules with 3 lines and 16 characters
• high contrast LCD-FSTN display, COG
• by Electronic Assembly
• for plug-in to socket connector or to solder directly into PCB
• very flat, with LED backlight only 5.8 mm
• characters: dependent on backlight
• interface for - 4/8-Bit data bus, SPI or I²C
• supply voltage: 3.3 or 5 V
• operating temperature range: -20 to +70 °C

• EA DOGM displays have no integrated background illumination. Suitable illuminations must be ordered separately.

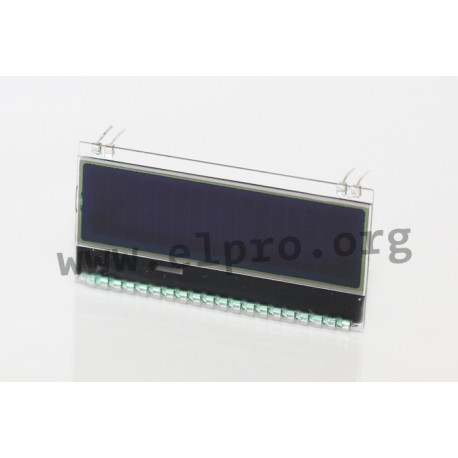

EA DOGM163S-A

EA DOGM163S-A

107053 EA DOGM163S-A EADOGM163S-A EADOGM163S-A LCD dot matrix modules. • dot matrix modules with 3 lines and 16 characters• high contrast LCD-FSTN display, COG• by Electronic Assembly• for plug-in to socket connector or to solder directly into PCB• very flat, with LED backlight only 5.8 mm• characters: dependent on backlight• interface for - 4/8-Bit data bus, SPI or I²C• supply voltage: 3.3 or 5 V• operating temperature range: -20 to +70 °C• EA DOGM displays have no integrated background illumination. Suitable illuminations must be ordered separately.

Specifications

manufacturer
Manufacturer's name EADOGM163S-A
Character size [mm] 2,47x3,65
Background black
Illumination optional
Lines 3
Characters 16
Field of view [mm] 51x14,5
Dimensions [mm] 55x28x2
Data Sheet

Unit price

15,29 €

Stock: 46
Further delivery:
CW 52/2025
