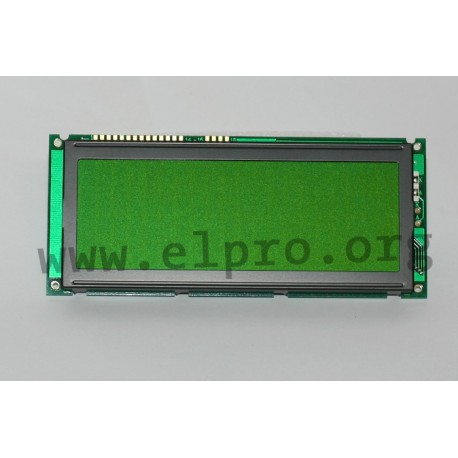

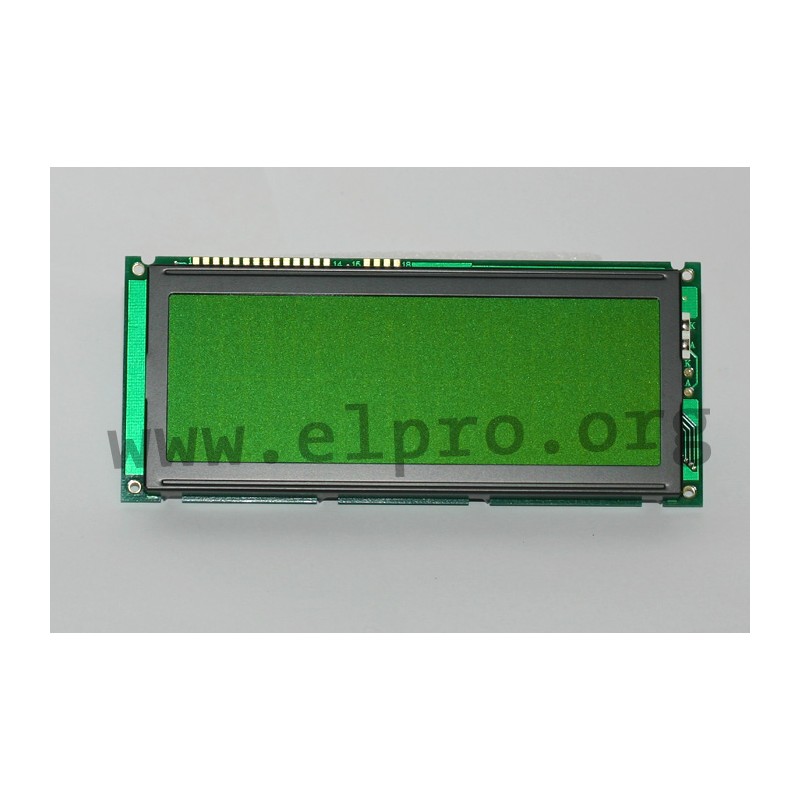

DEM 20487 SYH-LY

LCD dot matrix modules

• dot matrix modules with 4 lines and 20 characters
​• high contrast LCD-STN display
• LED backlight
• characters: schwarz
• by Display Elektronik
• interface for 4- or 8-Bit data bus
• supply voltage: 5V
• operating temperature range: -20 to +70°C

DEM 20487 SYH-LY View larger

DEM 20487 SYH-LY

8270 DEM 20487 SYH-LY DEM20487SYH-LY DEM20487SYH-LY LCD dot matrix modules. • dot matrix modules with 4 lines and 20 characters​• high contrast LCD-STN display• LED backlight• characters: schwarz• by Display Elektronik• interface for 4- or 8-Bit data bus• supply voltage: 5V• operating temperature range: -20 to +70°C

Data sheet

manufacturer
manufacturer's name DEM20487SYH-LY
dimensions [mm] 146x62,5x14
lines 4
characters 20
background yellow/green
illumination yellow
field of view [mm] 123x42,5
character size [mm] 4,85x9,23

Download

Data Sheet

31,79 €

stock: 25
