> Passive elements>Inductors>Current compensated suppression chokes>Radiohm current-compensated chokes, partially potted, horizontal, 42H series

Manufacturers

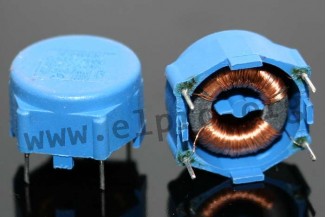

common-mode chokes 42H by Radiohm

* series 42H
* horizontal
* used for the suppression of asymmetrical interference signals on power supply lines
* to suppress most of power line-tied interference signals
* fitted with a high-permeability toroid core ...

common-mode chokes 42H by Radiohm

* series 42H
* horizontal
* used for the suppression of asymmetrical interference signals on power supply lines
* to suppress most of power line-tied interference signals
* fitted with a high-permeability toroid core (ferrite)
* encased in a flame retardant plastic material in accordance with UL94V-0 for horizontal or vertical mounting
* 4 tinned soldering pins, d=0,8mm
* rated voltage: 250V
* inductance tolerance: ±30%
* inductance loss: <10% at DC initial loading with IN
* testing voltage: 1500V/50Hz, 2s, winding to winding
* climatic category: DIN GKC (-40...+125°C)
* humidity: Cat. C
* ambient temperature: +60°C
* derating (Dependent on TU): I=0 (+120°C)
* overtemperature of windings: <55°C at rated current
* temperature of windings, max.: 115°C
* by Radiohm
