Q 32,768 kHz TC 26

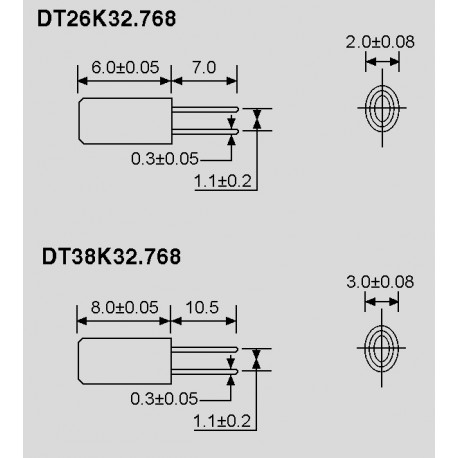

Abundance clock quartz crystal series DT26 and DT38

  • quartz crystals in a TC 26 and TC 38 housing
  • with a low power consumption
  • frequency: 32,768kHz

Q 32,768 kHz TC 26

3752 Q 32,768 kHz TC 26 DT26-32,768K-15-12.5 DT26-32,768K-15-12.5 Abundance clock quartz crystal series DT26 and DT38. quartz crystals in a TC 26 and TC 38 housing with a low power consumption frequency: 32,768kHz

Specifications

manufacturer
Manufacturer's name DT26-32,768K...
Case TC 26
Operating temperature range [°C] -20...+70
(TU=25°C) ±15ppm
Load capacitance [pF] 12,5
Frequency tolerance [ppm] ±15ppm
Frequency [kHz] 32,768
Data Sheet

Unit price

0,17 €

Stock: 14795
Further delivery:
CW 43/2024

Minimum order quantity 1 to 20 units or multiples of 25 plus 0 to 20 .
