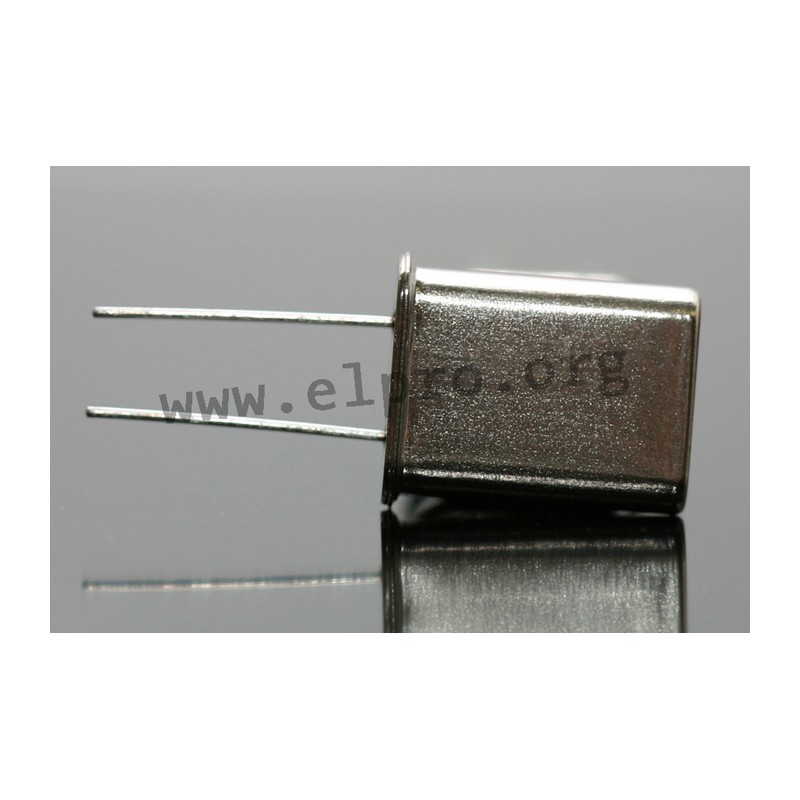

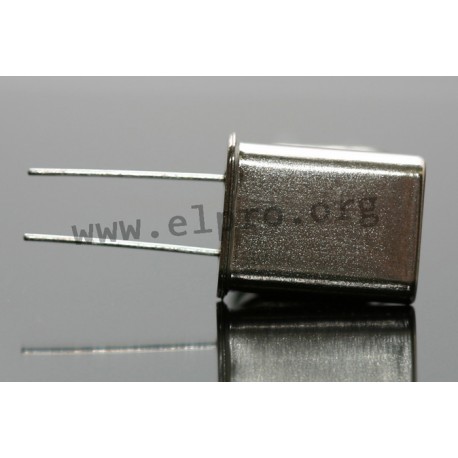

Q 20 MHz HC 49/U

Abundance quartz crystal series HC-49/U

  • microprocessor quartz crystals in an HC 49/U standard housing
  • made of metal
  • maximal shunt capacitance: 7pF
  • drive level: 1mW
  • aging: ±5ppm/year
  • operating temperature: -10 to +60°C

Q 20 MHz HC 49/U

3711 Q 20 MHz HC 49/U HC49U-20.000M-AF-30/30-25R-30P HC49U-20.000M-AF-30/30-25R-30P Abundance quartz crystal series HC-49/U. microprocessor quartz crystals in an HC 49/U standard housing made of metal maximal shunt capacitance: 7pF drive level: 1mW aging: ±5ppm/year operating temperature: -10 to +60°C

Specifications

manufacturer
Manufacturer's name HC49U-20.000...
Case HC 49/U
Frequency [MHz] 20
Data Sheet

Unit price

0,292 €

Stock: 4193
Further delivery:
CW 22/2025

Minimum order quantity 1 to 3 units or multiples of 10 plus 0 to 3 .
