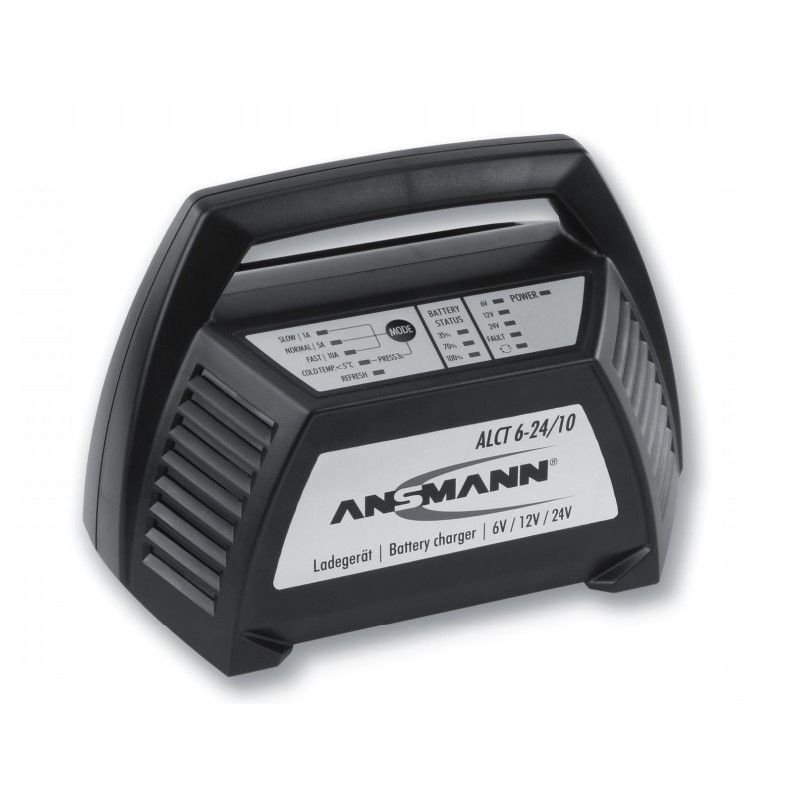

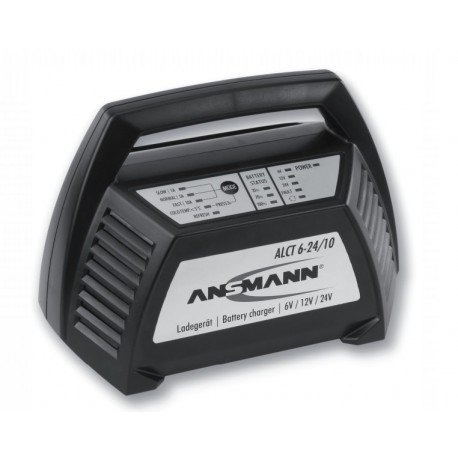

ALCT 6-24/10

Ansmann battery charger series ALCS and ALCT

Battery chargers for maintenance-free lead-acid batteries 2/6/12/24V (ALCS_) resp. 6/12/24V (ALCT_). These devices are protected against short circuit, wrong polarity as well as overcharge and automatically adjust themselves to the lead battery to be charged. The ALCT series also has an adjustable charging current which varies depending on the model. We offer the following types of this Ansmann series: ALCS 2-24A, ALCT 6-24/2, ALCT 6-24/4 and ALCT 6-24/10.

  • charging current: 1/5/10A
  • capacity: 4,5 to 240Ah
  • protection class II
  • IP20

6V rated voltage: 7,25V final voltage and 1000mA max. charging current
12V rated voltage: 14,5V final voltage and 5000mA max. charging current
24V rated voltage: 29V final voltage and 10000mA max. charging current

​

1001-0014, Ansmann battery chargers, for lead-acid batteries, ALCS and ALCT series

ALCT 6-24/10

139818 ALCT 6-24/10 1001-0014 1001-0014 Ansmann battery charger series ALCS and ALCT. Battery chargers for maintenance-free lead-acid batteries 2/6/12/24V (ALCS_) resp. 6/12/24V (ALCT_). These devices are protected against short circuit, wrong polarity as well as overcharge and automatically adjust themselves to the lead battery to be charged. The ALCT series also has an adjustable charging current which varies depending on the model. We offer the following types of this Ansmann series: ALCS 2-24A, ALCT 6-24/2, ALCT 6-24/4 and ALCT 6-24/10. charging current: 1/5/10Acapacity: 4,5 to 240Ahprotection class IIIP206V rated voltage: 7,25V final voltage and 1000mA max. charging current12V rated voltage: 14,5V final voltage and 5000mA max. charging current24V rated voltage: 29V final voltage and 10000mA max. charging current ​

Specifications

manufacturer
Manufacturer's name 1001-0014
Data Sheet

Unit price

80,49 €

Stock: 1
Further delivery:
CW 18/2024
