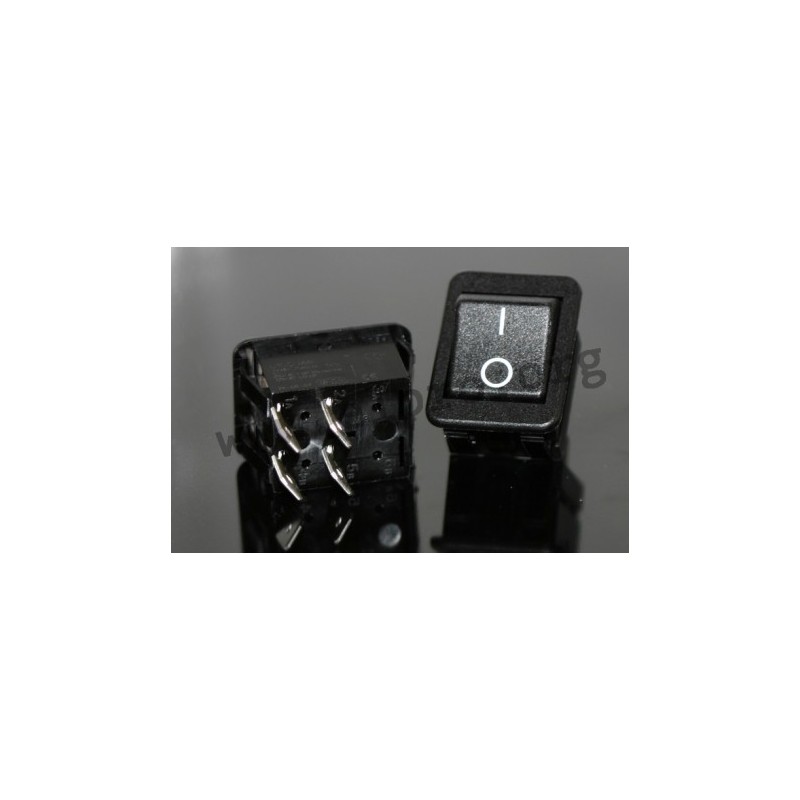

H150TALAAB

* 2-pole version
* with connector 6.3x0.8mm
* max. 250V AC operating voltage
* max. 16A switching current
* at inductive load max. 4A switching current
* 36A inrush current (EN61058-1)
* insulation resistance: >20MΩ
* contact resistance (new state, 12V DC/1A): <100mΩ
* contact opening width of WNX29: <3mm
* contact opening width of WNX28, WNX30 and C1553_: 3mm
* soldering conditions (hand solder): 350°C/6s
* material of shell and rocker: nylon 6.6
* material of illuminated rocker: polycarbonate
* material of current-carrying part: Cu alloy
* silver-plated contacts
* flammability class: UL94V2

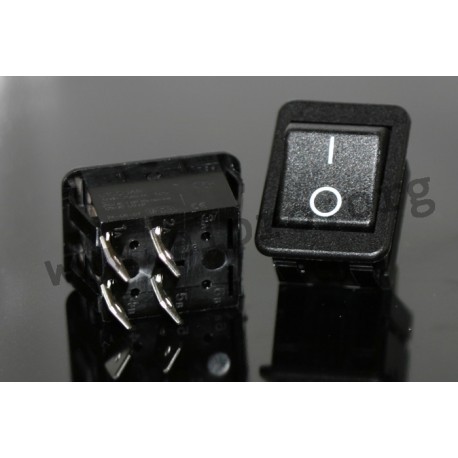

H150TALAAB, Arcolectric rocker switches, 16A 36A, for 22x30mm panel cut-out, 1550/1553/1560 series

H150TALAAB

251080 H150TALAAB H150TALAAB * 2-pole version * with connector 6.3x0.8mm* max. 250V AC operating voltage* max. 16A switching current* at inductive load max. 4A switching current * 36A inrush current (EN61058-1)* insulation resistance: &gt;20MΩ* contact resistance (new state, 12V DC/1A): &lt;100mΩ* contact opening width of WNX29: &lt;3mm* contact opening width of WNX28, WNX30 and C1553_: 3mm* soldering conditions (hand solder): 350°C/6s* material of shell and rocker: nylon 6.6* material of illuminated rocker: polycarbonate* material of current-carrying part: Cu alloy* silver-plated contacts* flammability class: UL94V2

Specifications

manufacturer
Manufacturer's name H150TALAAB
Case colour black
Rocker black
Illuminated no
Switching current [A] 36
Panel cut-out [mm] 22x30
Data Sheet

Unit price

3,89 €

Stock: 0
Further delivery:
CW 23/2026

Minimum order quantity 1.000 units or
multiples of 1.000.
