09-0174-00-08

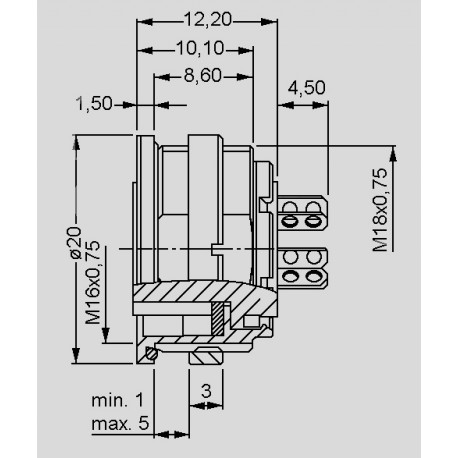

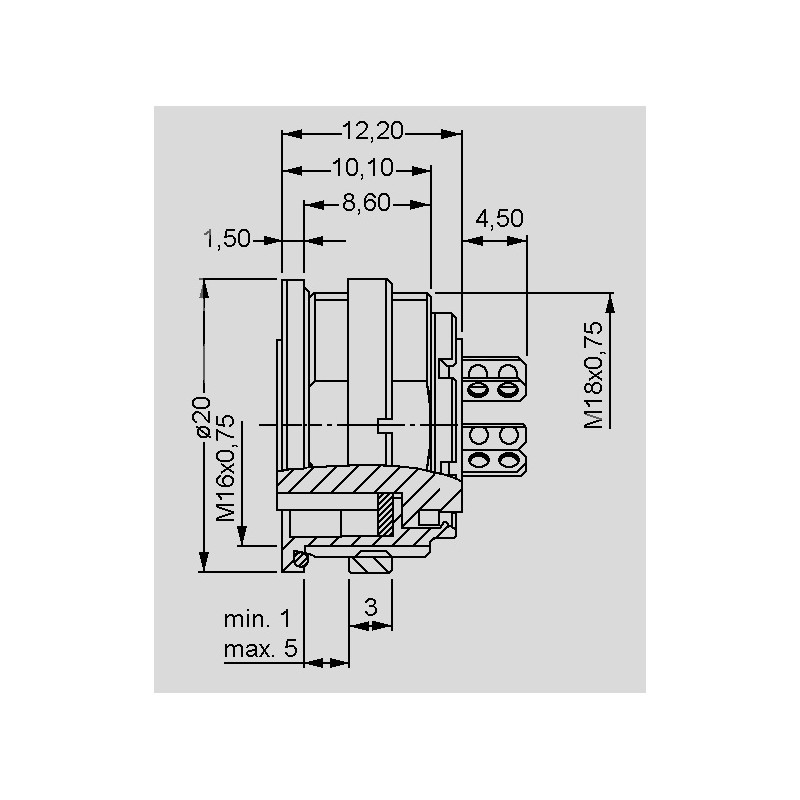

subminiature connectors M16, 723 by Binder

* series: M16, 723
* panel mounting
* panel mounting connectors with screw locking according to IEC60130-9
* precision metal construction
* excellent EMC shielding
* degree of protection IP67
* connector locking system: screw
* termination: solder
* wire gauge, max. 09-_-0003, -0005, -0008: 0,75mm2
* wire gauge, max. 09-_-0012: 0,25mm2
* mechanical operating life: >500 Cycles
* temperature range: -30...+95°C
* material of contact: CuZn
* material of housing: Zn (diecasting), nickel
* by Binder

09-0174-00-08

40950 09-0174-00-08 09 0174 00 08 09 0174 00 08 subminiature connectors M16, 723 by Binder. * series: M16, 723 * panel mounting* panel mounting connectors with screw locking according to IEC60130-9* precision metal construction* excellent EMC shielding* degree of protection IP67* connector locking system: screw* termination: solder* wire gauge, max. 09-_-0003, -0005, -0008: 0,75mm2* wire gauge, max. 09-_-0012: 0,25mm2* mechanical operating life: >500 Cycles* temperature range: -30...+95°C* material of contact: CuZn* material of housing: Zn (diecasting), nickel* by Binder

Specifications

manufacturer
Manufacturer's name 09 0174 00 08
Number of poles 8
Contact surface Ag
Rated current [A] 5
Nominal voltage [V] 60 (32)
Resistance [mΩ] 5
Data Sheet

Unit price

14,49 €

Stock: 7
Further delivery:
CW 20/2024
