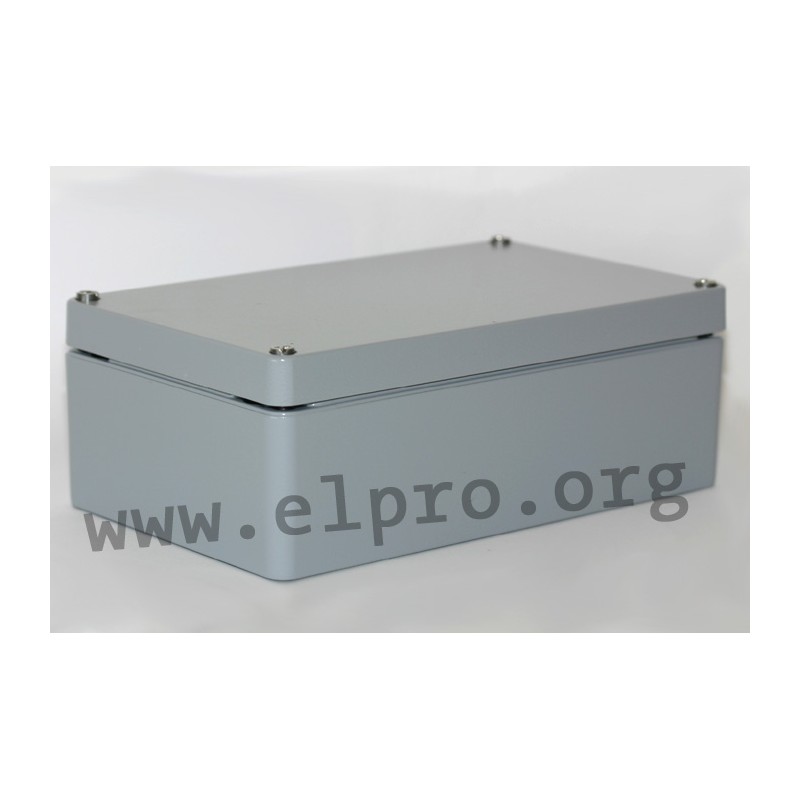

STGE 118

diecast aluminium enclosures

• series: Euromas by Bopla
• colour: silver-grey
• protection class: IP66
• enclosure material: GD Al Si 12
• dust proof, jet water-protected aluminum die-cast metal enclosure
• with integrated sealed cover (neoprene or polyurethane-foamed), and stainless steel countersunk screws, 90°C heat and chemical resistant
• recommended for all regular clamping types and also as clamping enclosures due to the assembly of cams in the lower surface of the enclosure
• offset assembly cams make the attachment of plates without pre-drilling possible
• cams with lateral mounting rails contribute to a secure levitation rail attachment.
• cams are additionally attached to the inner surface of the cover
• all assembly cams are appropriate for machine screws
• also suitable for wall assembly

application:
• in tough environments - to protect electronics
• for external use
• everywhere, where high temperatures occur
• industrial sectors, e.g. car wash

STGE 118

105339 STGE 118 01118000 01118000 diecast aluminium enclosures. • series: Euromas by Bopla• colour: silver-grey• protection class: IP66• enclosure material: GD Al Si 12• dust proof, jet water-protected aluminum die-cast metal enclosure• with integrated sealed cover (neoprene or polyurethane-foamed), and stainless steel countersunk screws, 90°C heat and chemical resistant• recommended for all regular clamping types and also as clamping enclosures due to the assembly of cams in the lower surface of the enclosure• offset assembly cams make the attachment of plates without pre-drilling possible• cams with lateral mounting rails contribute to a secure levitation rail attachment.• cams are additionally attached to the inner surface of the cover• all assembly cams are appropriate for machine screws• also suitable for wall assembly application:• in tough environments - to protect electronics• for external use• everywhere, where high temperatures occur• industrial sectors, e.g. car wash

Specifications

manufacturer
Manufacturer's name 01118000
Case colour silver-grey
Dimensions [mm] 160x100x81
Data Sheet

Unit price

38,89 €

Stock: 7
Further delivery:
CW 27/2024
