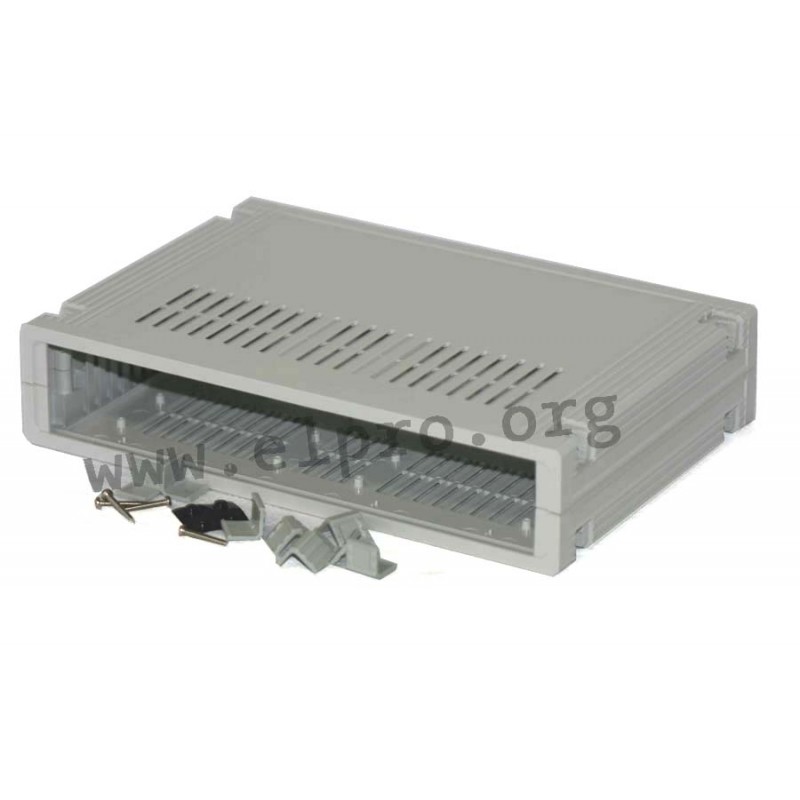

UM 62009 L

ABS desktop enclosures

* the enclosure is composed of two half shells
optional:
* front and back panel (FP_)
* assembly set in two depths (AB_L)
* four fixed feet (UM-AS)
* two fixed and two folding feet (UM-ASK)

half shell enclosures
* ABS half shell enclosures with molded, covered louvers in the upper and lower part
* surface with eroding structure in light grey (similar to RAL 7035)
* due to the symmetry of the half shells, connection possible using four M3 screws in the upper or lower part.
* the screw holes can be covered with eight provided cover caps.
* cams for cutting screws are available in the enclosure shell halves.
* the cam mass is especially co-ordinated to meet European card format.
* the nuts in the side panels of the shell half slots are attached at a distance of 10mm, in order to be able to push in panels vertically.

UM 32009 L - 2 half shells UM3, louvred
UM 32609 L - 2 half shells UM3, deep, louvred
UM 52011 L - 2 half shells UM5, louvred
UM 62009 L - 2 half shells UM6, louvred
UM 62609 L - 2 half shells UM6, deep, louvred

FP 30009 - 1 front panel for UM3, without extension set
FP 30018 - 1 front panel for UM3, with 1 extension set
FP 50011 - 1 front panel for UM5, without extension set
FP 50020 - 1 front panel for UM5, with 1 extension set
FP 60009 - 1 front panel for UM6, without extension set
FP 60018 - 1 front panel for UM6, with 1 extension set
FP 60027 - 1 front panel for UM6, with 2 extension sets

front and back panel FP_
* made of anodized aluminium, insertable
* 2mm thick
* 11 front panels available in different variations

extension set AB_L
* the enclosure height can be extended by a maximum of three extension sets, each 45,72mm (1.8")
* material ABS, color light grey (similar to RAL 7035)
* the assembly parts are connected with M3 screws underneath each other

set-up foot set UM-AS
* set-up foot set consisting of four fixed feet in agate grey
* enclosure has more ground room (12mm) which particularly improves the air circulation of either horizontally or vertically stacked enclosures
* the feet can alternatively be used for horizontal or vertical placed enclosures

set-up foot set UM-ASK
* set-up foot set consisting of two fixed feet and two folding feet in agate grey
* enclosure is diagonally set-up to facilitate e.g. reading displays
* the feet can alternatively be used for horizontal or vertical placed enclosures

UM 62009 L

UM 62009 L

17157 UM 62009 L 55620010 55620010 ABS desktop enclosures. * the enclosure is composed of two half shellsoptional:* front and back panel (FP_)* assembly set in two depths (AB_L)* four fixed feet (UM-AS)* two fixed and two folding feet (UM-ASK)half shell enclosures* ABS half shell enclosures with molded, covered louvers in the upper and lower part* surface with eroding structure in light grey (similar to RAL 7035)* due to the symmetry of the half shells, connection possible using four M3 screws in the upper or lower part.* the screw holes can be covered with eight provided cover caps.* cams for cutting screws are available in the enclosure shell halves.* the cam mass is especially co-ordinated to meet European card format.* the nuts in the side panels of the shell half slots are attached at a distance of 10mm, in order to be able to push in panels vertically.UM 32009 L - 2 half shells UM3, louvredUM 32609 L - 2 half shells UM3, deep, louvredUM 52011 L - 2 half shells UM5, louvredUM 62009 L - 2 half shells UM6, louvredUM 62609 L - 2 half shells UM6, deep, louvredFP 30009 - 1 front panel for UM3, without extension setFP 30018 - 1 front panel for UM3, with 1 extension setFP 50011 - 1 front panel for UM5, without extension setFP 50020 - 1 front panel for UM5, with 1 extension setFP 60009 - 1 front panel for UM6, without extension setFP 60018 - 1 front panel for UM6, with 1 extension set FP 60027 - 1 front panel for UM6, with 2 extension sets front and back panel FP_ * made of anodized aluminium, insertable* 2mm thick* 11 front panels available in different variationsextension set AB_L* the enclosure height can be extended by a maximum of three extension sets, each 45,72mm (1.8")* material ABS, color light grey (similar to RAL 7035)* the assembly parts are connected with M3 screws underneath each otherset-up foot set UM-AS* set-up foot set consisting of four fixed feet in agate grey * enclosure has more ground room (12mm) which particularly improves the air circulation of either horizontally or vertically stacked enclosures* the feet can alternatively be used for horizontal or vertical placed enclosuresset-up foot set UM-ASK* set-up foot set consisting of two fixed feet and two folding feet in agate grey* enclosure is diagonally set-up to facilitate e.g. reading displays* the feet can alternatively be used for horizontal or vertical placed enclosures

Specifications

manufacturer
Manufacturer's name 55620010
Outside dimensions [mm] 290,9x62,2x199
Data Sheet

Unit price

44,49 €

Stock: 7
