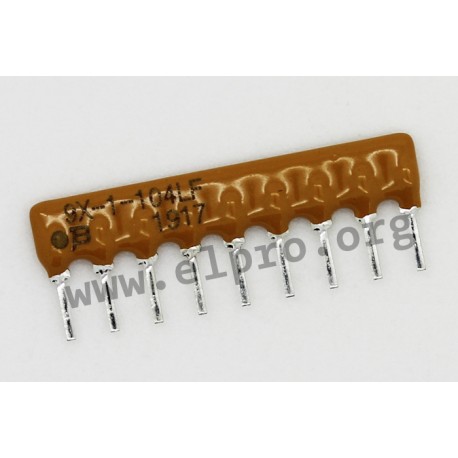

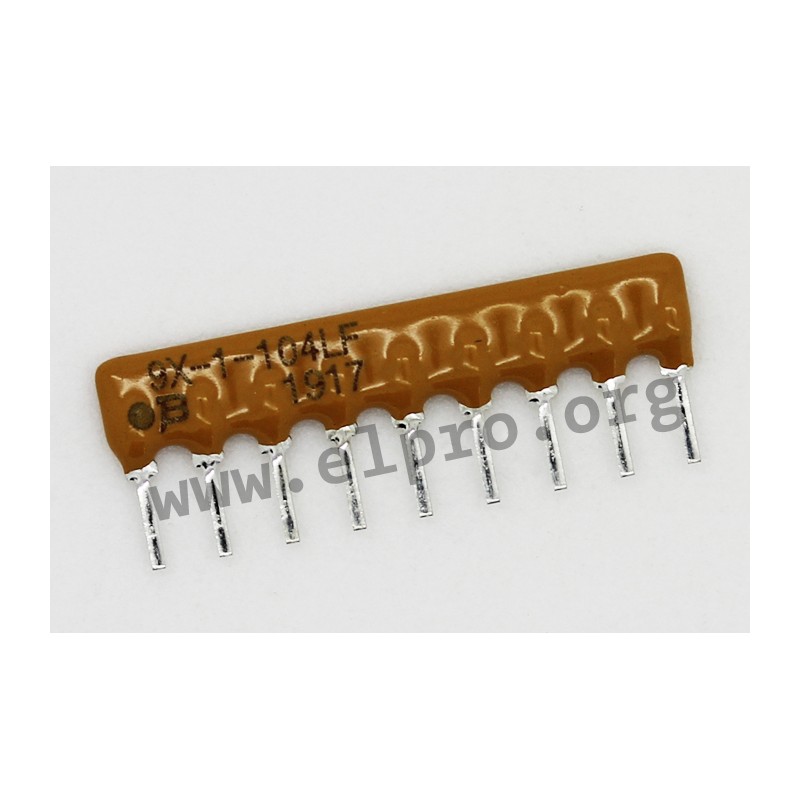

4609X-101-105LF

Bourns thick film resistor network series 4600X

  • 9 pins
  • 8 resistors
  • power rating: 0,2W
  • tolerance: ±2%
  • pitch: 2,54mm
  • contacts: Sn/Ag/Cu-plated
  • housing: SIP/SIL
  • working voltage Umax.: 100V
  • insulation resistance: 10000MOhm
  • dielectric withstanding voltage: 200VRMS
  • temperature range: -55 to +125°C

4609X-101-105LF

113934 4609X-101-105LF 4609X-101-105LF Bourns thick film resistor network series 4600X. 9 pins8 resistorspower rating: 0,2Wtolerance: ±2%pitch: 2,54mmcontacts: Sn/Ag/Cu-platedhousing: SIP/SILworking voltage Umax.: 100Vinsulation resistance: 10000MOhmdielectric withstanding voltage: 200VRMStemperature range: -55 to +125°C

Specifications

manufacturer
Manufacturer's name 4609X-101-105LF
Resistance [Ω] 1M
Power [W] 0,2
Tolerance [%] 2
Data Sheet

Unit price

0,138 €

Stock: 300
Further delivery:
CW 27/2024

Minimum order quantity 100 units or
multiples of 100.
