T 0345 RA

assembly fuse holders

• for microfuses 5x20mm or 6.3x32mm
• terminals: eyelets
• injection molding made of nylon 6.6 (flame resistant)
• current carrying part made of Cu-alloy, silver-plated
• contact made of silver alloy
• flammibility class: UL94V-2
• for microfuses 6.3x32mm up to 16A
• snap-in assembly
• with twist fuse
• plug, solder lugs 6.3x0.8mm
• suitable for assembly onto a PCB with a panel thickness 0.8...2mm
• panel holes max. Ø17.4mm

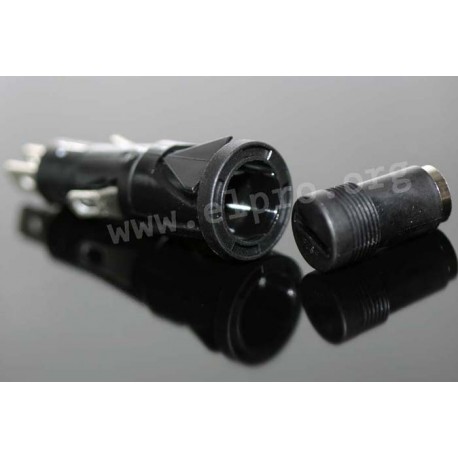

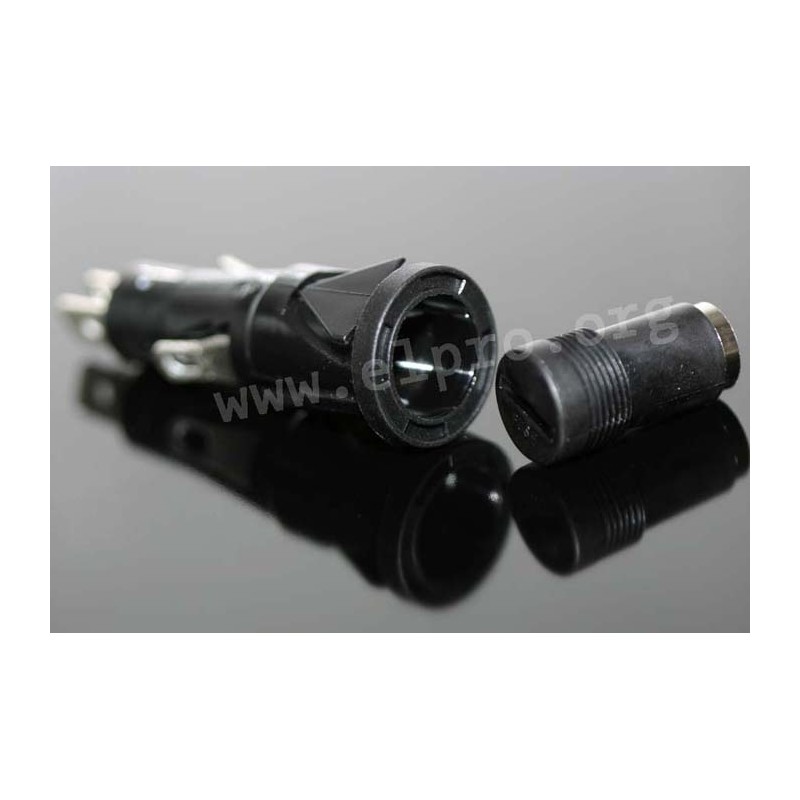

T 0345 RA View larger

T 0345 RA

27550 T 0345 RA T0345RAAAB T0345RAAAB assembly fuse holders. • for microfuses 5x20mm or 6.3x32mm• terminals: eyelets• injection molding made of nylon 6.6 (flame resistant)• current carrying part made of Cu-alloy, silver-plated• contact made of silver alloy• flammibility class: UL94V-2• for microfuses 6.3x32mm up to 16A• snap-in assembly• with twist fuse• plug, solder lugs 6.3x0.8mm• suitable for assembly onto a PCB with a panel thickness 0.8...2mm• panel holes max. Ø17.4mm

Data sheet

manufacturer
manufacturer's name T0345RAAAB

Download

Data Sheet

10,39 €

Volume discounts

10 pcs. / 2,79 €

stock: 402
