CPS-EC480.150(R2)

Camtec rectifier battery charger series CPS-EC480

Battery chargers with 480W, an ajustable output voltage, a remote controle,  a remote sense, and an DC-OK signal. These devices are protected against overload, over voltage, overtemperature and short circuit. We offer the following types of this Camtec series: CPS-EC480.024(R2), CPS-EC480.036(R2), CPS-EC480.048(R2), CPS-EC480.060(R2), CPS-EC480.072(R2), CPS-EC480.110(R2), CPS-EC480.150(R2), CPS-EC480.220(R2), and CPS-EC480.300(R2).

  • output current: 480W
  • input voltage: 184 to 264V AC, (47...63Hz), 250 to 375V DC
  • input current: 4,9A
  • maximum starting current: 9,8A
  • operating temperature: -25 to +70°C
  • dimensions: 200x130x114,5mm
  • weight: 2900g

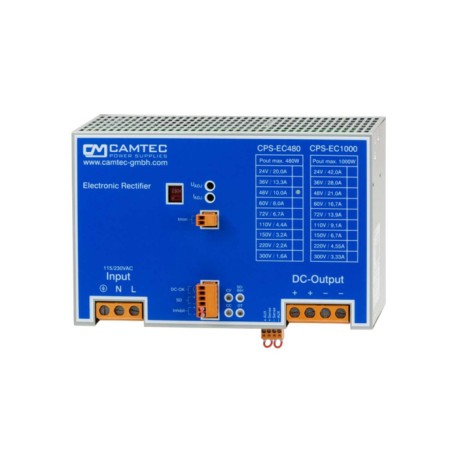

CPS-EC480.150(R2), Camtec DC rectifier battery charger, 480W, IP20, DIN rail mounting, CPS-EC480 series

CPS-EC480.150(R2)

251850 CPS-EC480.150(R2) CPS-EC480.150(R2) Camtec rectifier battery charger series CPS-EC480. Battery chargers with 480W, an ajustable output voltage, a remote controle,  a remote sense, and an DC-OK signal. These devices are protected against overload, over voltage, overtemperature and short circuit. We offer the following types of this Camtec series: CPS-EC480.024(R2), CPS-EC480.036(R2), CPS-EC480.048(R2), CPS-EC480.060(R2), CPS-EC480.072(R2), CPS-EC480.110(R2), CPS-EC480.150(R2), CPS-EC480.220(R2), and CPS-EC480.300(R2). output current: 480W input voltage: 184 to 264V AC, (47...63Hz), 250 to 375V DC  input current: 4,9A maximum starting current: 9,8A operating temperature: -25 to +70°C dimensions: 200x130x114,5mm weight: 2900g

Specifications

manufacturer
Manufacturer's name CPS-EC480.150(R2)
Output voltage [V] 150
Efficiency [%] 92
Output current [A] 3,3
Output power [W] 480
Data Sheet

Unit price

644,59 €

Stock: 0
Further delivery:
CW 04/2026
