HSEUIREG07201.130(R2)

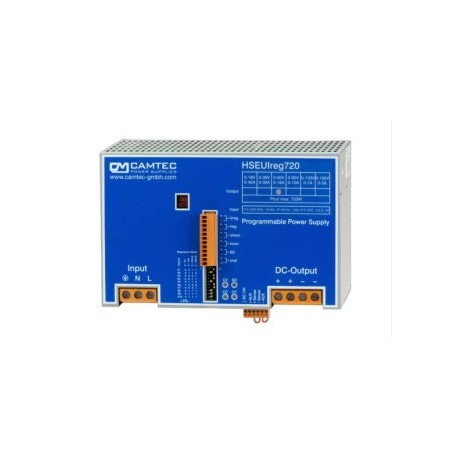

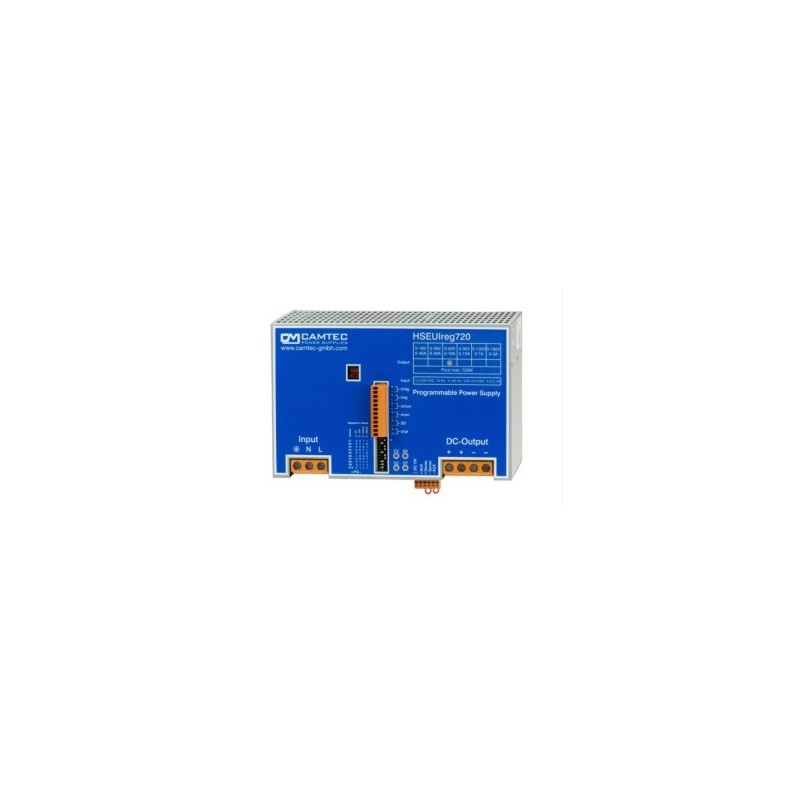

Camtec switching power supplies series HSEUiREG07201(R2)

These switching power supplies have a metal housing, their output voltage and output current is programmable, as well as they have a remote function and a remote sense. These devices are suitable for DC-OK signals and furthermore they are protectet against short circuit, overload, overtemperature, and overvoltage. We offer various types of this camtec series.

  • safety norms: EN 61010-1; EN 62368-1; EN 60950-1
  • EMV norms: EN 55032 class B
  • protection class I
  • protection type: IP20
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC
  • input current: 7,2A
  • maximal starting current: 9,8A
  • interfaces: 0 to 10V, 0 to 20mA
  • output voltage tolerance: ±0,05%
  • connection type: screw terminal
  • isolation voltage: 3000V (I/P-O/P), 2500V (I/P-FG), 500V (O/P-FG)
  • operating temperature: -25 to +60°C
  • dimensions: 200x130x115mm
  • weight: 3000g
HSEUIREG07201.130(R2), Camtec switching power supplies, DIN rail mounting, 720W, HSEUiREG07201(R2) series

HSEUIREG07201.130(R2)

251857 HSEUIREG07201.130(R2) HSEUIREG07201.130(R2) Camtec switching power supplies series HSEUiREG07201(R2). These switching power supplies have a metal housing, their output voltage and output current is programmable, as well as they have a remote function and a remote sense. These devices are suitable for DC-OK signals and furthermore they are protectet against short circuit, overload, overtemperature, and overvoltage. We offer various types of this camtec series. safety norms: EN 61010-1; EN 62368-1; EN 60950-1 EMV norms: EN 55032 class B protection class I protection type: IP20 input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC input current: 7,2A maximal starting current: 9,8A interfaces: 0 to 10V, 0 to 20mA output voltage tolerance: ±0,05% connection type: screw terminal isolation voltage: 3000V (I/P-O/P), 2500V (I/P-FG), 500V (O/P-FG) operating temperature: -25 to +60°C dimensions: 200x130x115mm weight: 3000g

Specifications

manufacturer
Manufacturer's name HSEUIREG0720...
Efficiency [%] 90
Output current range [A] 0...7
Output power [W] 720
Ripple [mVp-p] 200
Output voltage range [V] 0...130
Data Sheet

Unit price

1.182,79 €

Stock: 0
Further delivery:
CW 04/2026
