HSEUREG04801.015(R2)

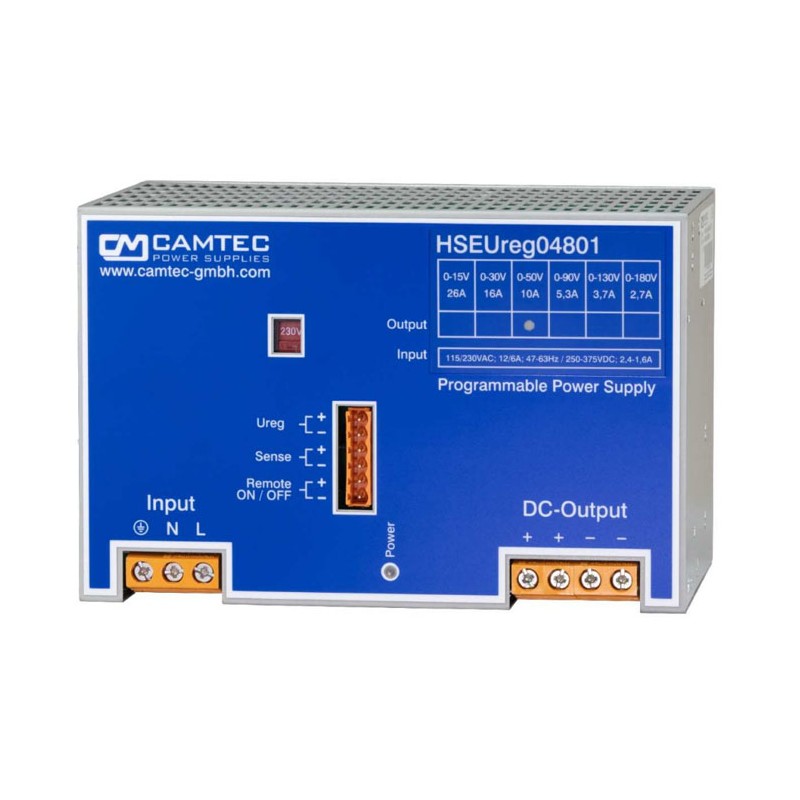

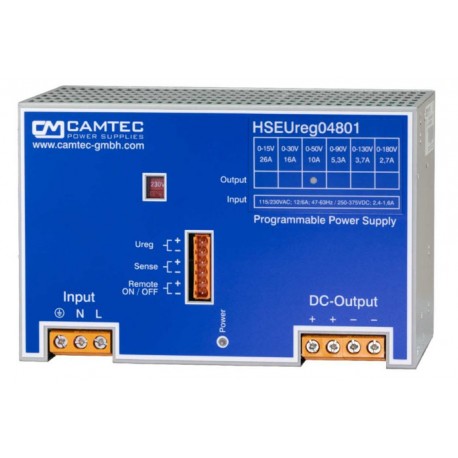

Camtec DIN rail power supply series HSEUREG04801

Switching power supplies in a metal housing (IP20) with 480W, a parallel function, protection class I, a remote ON/OFF control and a remote sense function. These devices are suitable for DIN rail mounting and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a programmable output voltage and comply with EN61010-1, EN62368-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: HSEUREG04801.015(R2), HSEUREG04801.030(R2), HSEUREG04801.050(R2), HSEUREG04801.090(R2), HSEUREG04801.130(R2) and HSEUREG04801.180(R2).

  • single output
  • output: 480W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC
  • input current: 4,9A
  • maximal input inrush current: 81A
  • interfaces: 0 to 10V, 0 to 20mA
  • output voltage tolerance: ±0,05%
  • connection type: screw terminal
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • dimensions: 200x130x115mm
  • weight: 2800g
HSEUREG04801.015(R2), Camtec DIN rail switching power supplies, 480W, programmable output voltage, HSEUREG04801 series

HSEUREG04801.015(R2)

240999 HSEUREG04801.015(R2) HSEUREG04801.015(R2) Camtec DIN rail power supply series HSEUREG04801. Switching power supplies in a metal housing (IP20) with 480W, a parallel function, protection class I, a remote ON/OFF control and a remote sense function. These devices are suitable for DIN rail mounting and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a programmable output voltage and comply with EN61010-1, EN62368-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: HSEUREG04801.015(R2), HSEUREG04801.030(R2), HSEUREG04801.050(R2), HSEUREG04801.090(R2), HSEUREG04801.130(R2) and HSEUREG04801.180(R2). single output output: 480W input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC input current: 4,9A maximal input inrush current: 81A interfaces: 0 to 10V, 0 to 20mA output voltage tolerance: ±0,05% connection type: screw terminal withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2500V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C dimensions: 200x130x115mm weight: 2800g

Specifications

manufacturer
Manufacturer's name HSEUREG04801...
Efficiency [%] 90
Output current [A] 26
Output power [W] 480
Ripple [mVp-p] 40
Output voltage range [V] 0...15
Data Sheet
