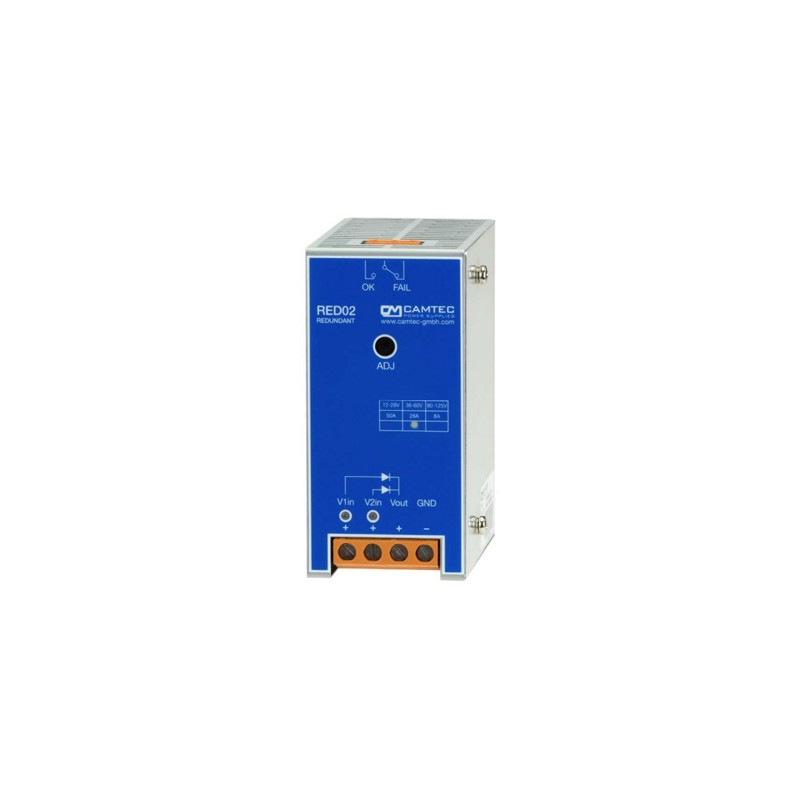

RED00202A(R2)

Camtec Redundancy modules series RED00202(R2)

Redundancy modules in a closed housing (62mm width) with a 1-channel output, a 2-chanel input, and DC-OK signal. These devices are suitable for direct DIN rail mounting, and confirm with EN55032 class A and B, as well as EN61010-1 and EN62368-1. We offer the following types of this Camtec series: RED00202A(R2), RED00202B(R2), and RED00202C(R2).

  • single output
  • input voltage range: 0 to 125V DC
  • number of inputs: 2
  • operating temperature: -40 bis +85°C
  • dimensions: 62x13x115mm
  • weigth: 1000g

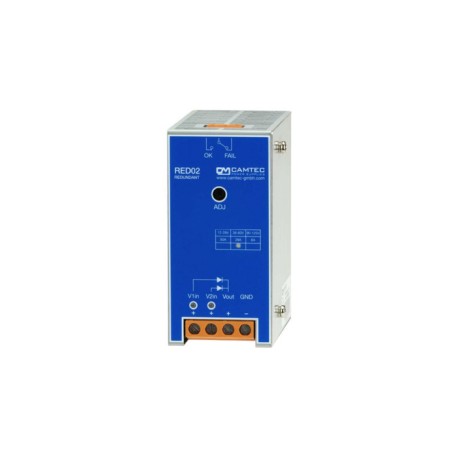

RED00202A(R2), Camtec Redundancy modules, RED00202(R2) series

RED00202A(R2)

251935 RED00202A(R2) RED00202A(R2) Camtec Redundancy modules series RED00202(R2) . Redundancy modules in a closed housing (62mm width) with a 1-channel output, a 2-chanel input, and DC-OK signal. These devices are suitable for direct DIN rail mounting, and confirm with EN55032 class A and B, as well as EN61010-1 and EN62368-1. We offer the following types of this Camtec series: RED00202A(R2), RED00202B(R2), and RED00202C(R2). single output input voltage range: 0 to 125V DC number of inputs: 2 operating temperature: -40 bis +85°C dimensions: 62x13x115mm weigth: 1000g

Specifications

manufacturer
Manufacturer's name RED00202A(R2)
Output voltage [V] 28
Input voltage range [V] 0...28
Output current [A] 50
Data Sheet

Unit price

235,29 €

Stock: 0
Further delivery:
CW 04/2026
