DACN10-L21YG-275

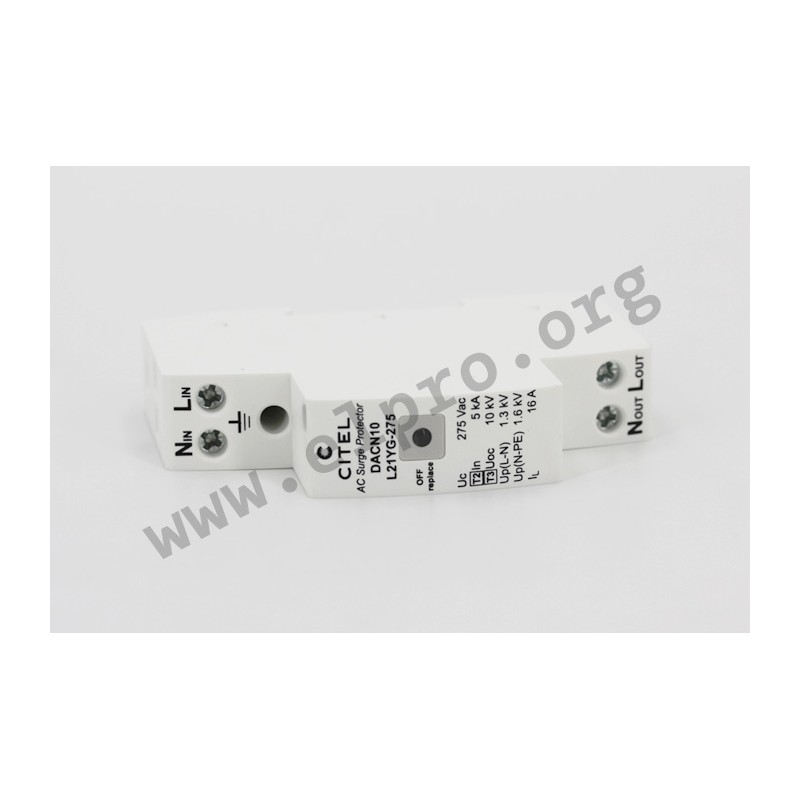

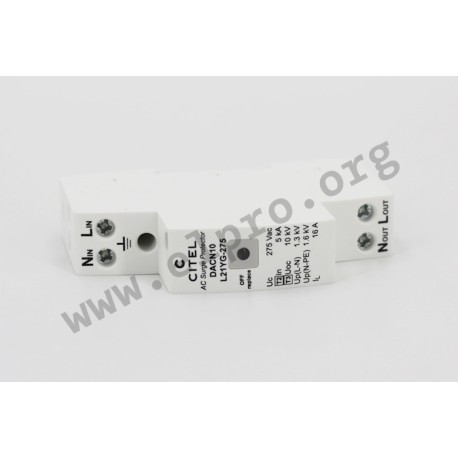

Citel surge protection device series DACN10

Type 2+3 surge protection devices (SPD) in a compact plastic housing (IP20) for protection class I applications. These devices are suitable for DIN rail mounting (35mm) and comply with IEC61643-11, EN61643-11 as well as UL1449. We offer the type DACN10-L21YG-275 of this Citel series.

  • protected phases: 1
  • protection level: 1600V
  • SPD: type 2+3
  • protection class: I
  • maximal leakage current: 10kA
  • connection type: screw terminal
  • additional protection: remote signaling contact
  • operating temperature: -40 to +85°C

DACN10-L21YG-275

239253 DACN10-L21YG-275 DACN10-L21YG-275 Citel surge protection device series DACN10. Type 2+3 surge protection devices (SPD) in a compact plastic housing (IP20) for protection class I applications. These devices are suitable for DIN rail mounting (35mm) and comply with IEC61643-11, EN61643-11 as well as UL1449. We offer the type DACN10-L21YG-275 of this Citel series. protected phases: 1 protection level: 1600V SPD: type 2+3 protection class: I maximal leakage current: 10kA connection type: screw terminal additional protection: remote signaling contact operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name DACN10-L21YG-275
Data Sheet

Unit price

21,99 €

Stock: 0
Further delivery:
CW 30/2024
