MSB6-400/LD

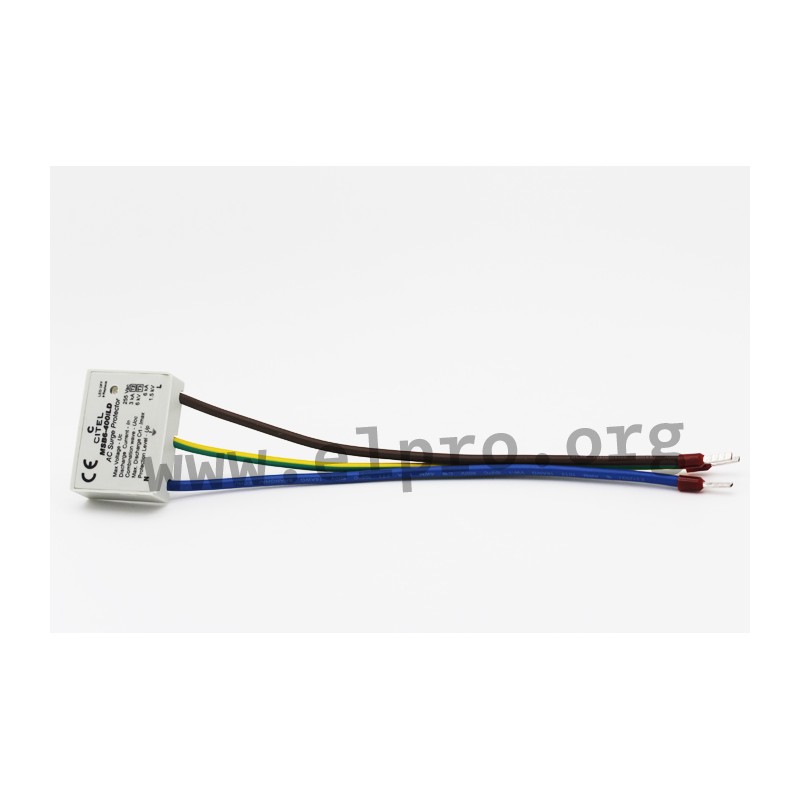

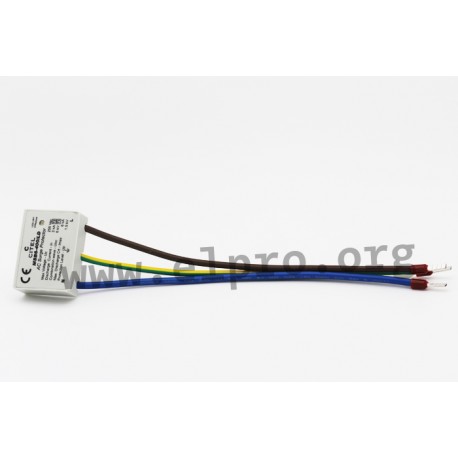

Citel surge protection device series MSB6

Type 3 surge protection devices (SPD) in a plastic housing (IP20) with a stranded wire connection and protection class I. These devices are suitable for 230V AC mains and for mounting behind a socket, in a cable duct as well as directly on the device. They are hardwired, have an LED indicator for blackouts or malfunctions and comply with IEC/EN61643-11. We offer the type MSB6-400/LD of this Citel series.

  • protected phases: 1
  • SPD type: 3
  • maximal leakage current: 6kA
  • protection level: 1500V
  • protection class: I
  • circuit isolation: no
  • connection type: wire
  • operating temperature: -40 to +85°C
MSB6-400/LD

MSB6-400/LD

112288 MSB6-400/LD MSB6-400/LD Citel surge protection device series MSB6. Type 3 surge protection devices (SPD) in a plastic housing (IP20) with a stranded wire connection and protection class I. These devices are suitable for 230V AC mains and for mounting behind a socket, in a cable duct as well as directly on the device. They are hardwired, have an LED indicator for blackouts or malfunctions and comply with IEC/EN61643-11. We offer the type MSB6-400/LD of this Citel series. protected phases: 1 SPD type: 3 maximal leakage current: 6kA protection level: 1500V protection class: I circuit isolation: no connection type: wire operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name MSB6-400/LD
Data Sheet

Unit price

13,69 €

Stock: 115
Further delivery:
CW 25/2024
