15-007643

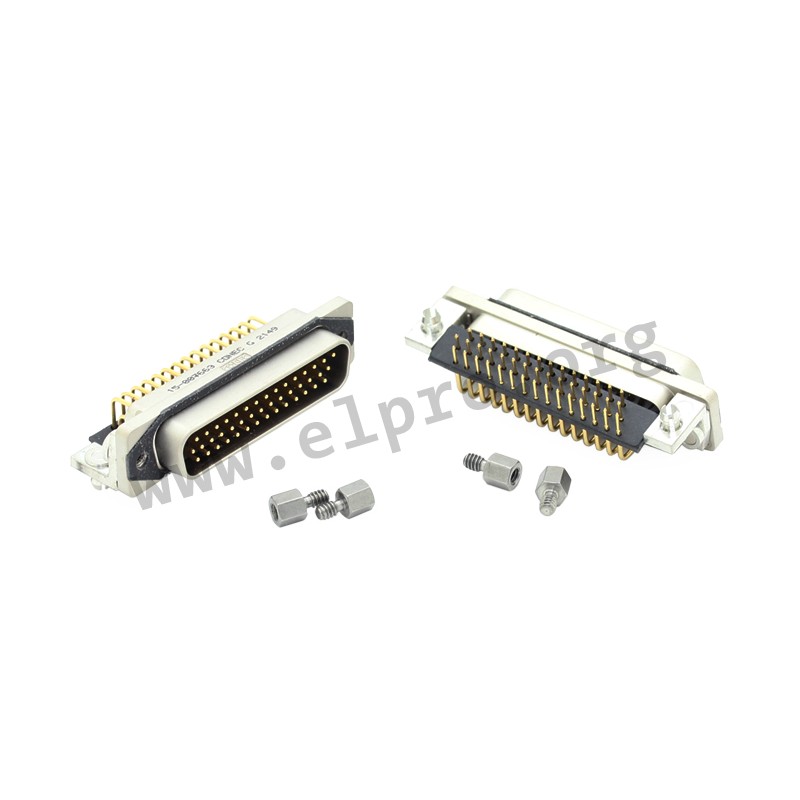

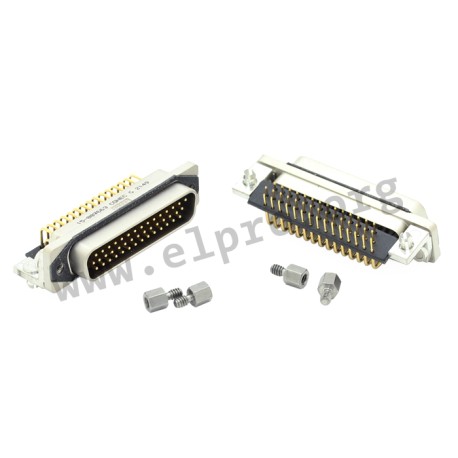

Conec pin strip series 15-0076_Slim Con

  • high density D-Sub pin strips
  • with angled solder pins (90°) and a 1,6mm PCB clip
  • suitable for wave soldering (265°C/8s) as well as for snap-in mounting
  • insulator made of PBT GF (UL94V-0)
  • thread type: UNC 4-40
  • rated voltage: 60V
  • rated current: 3A

15-007643

240137 15-007643 15-007643 Conec pin strip series 15-0076_Slim Con. high density D-Sub pin strips with angled solder pins (90°) and a 1,6mm PCB clip suitable for wave soldering (265°C/8s) as well as for snap-in mounting insulator made of PBT GF (UL94V-0) thread type: UNC 4-40 rated voltage: 60V rated current: 3A

Specifications

manufacturer
Manufacturer's name 15-007643
Number of poles 15
Data Sheet

Unit price

20,19 €

Stock: 0
Next incoming goods:
CW 15/2024
30 units


Further delivery:
CW 26/2024
