DS 37 P-A

high quality version

* DS_P-L: solder buckets
* DS_P-P: solder pins
* DS_P-A: 90° angled

* machined contacts
* insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0)
* contact material: Cu-alloy
* cotact surface: nickel, gold-plated
* housing frame: steel plate, nickel layer and tin-plated
* operating temperature range: -55...+125°C

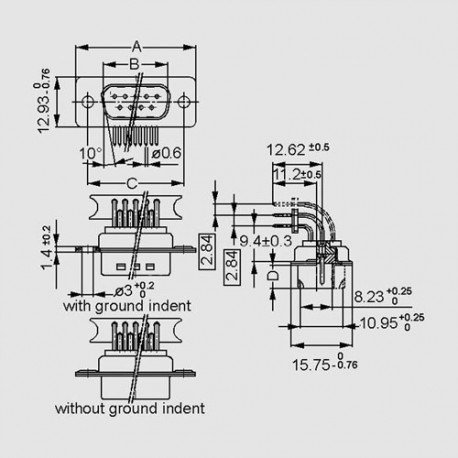

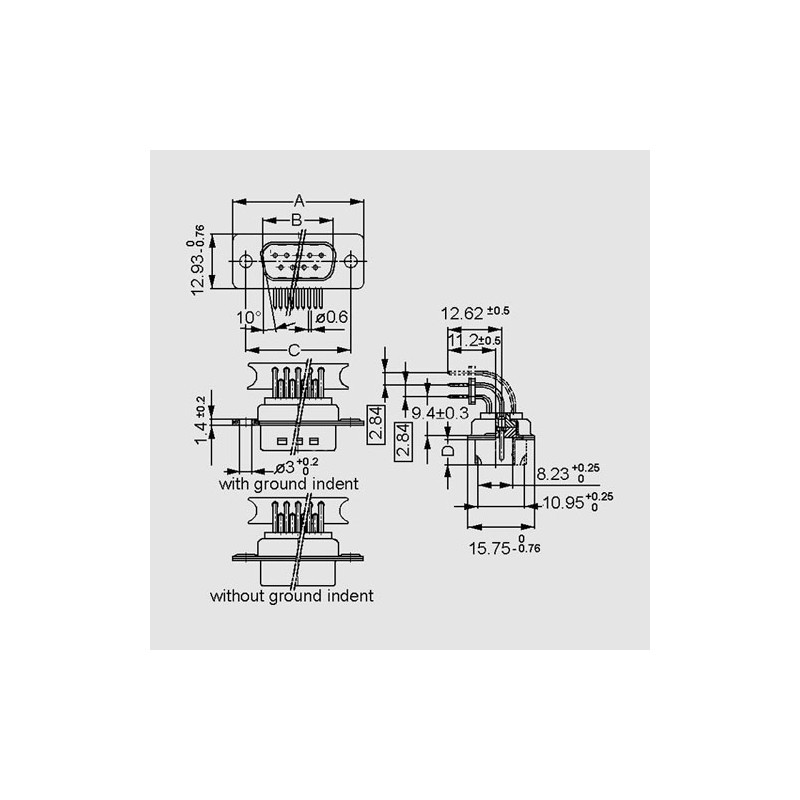

dimensions DS _ P-A

DS 37 P-A

28227 DS 37 P-A 163A11249X 163A11249X high quality version. * DS_P-L: solder buckets * DS_P-P: solder pins * DS_P-A: 90° angled * machined contacts * insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0) * contact material: Cu-alloy * cotact surface: nickel, gold-plated * housing frame: steel plate, nickel layer and tin-plated * operating temperature range: -55...+125°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 163A11249X
Number of poles 37
A [mm] 69,7
Width [mm] 55,3
D [mm] 5,99
C [mm] 63,5

Unit price

7,89 €

Stock: 95

Minimum order quantity 5 units or
multiples of 5.
