DF 09 P-L

high-quality version

* DF_P-L: solder buckets
* DF_P-P: solder pins
* DF_P-A: 90° angled

* machined contacts
* insulating shell: polyester, glass fiber reinforced, self-extinguishing nach UL94V-0
* contacts: Cu-alloy
* contact surface: gold over nickel
* housing frame: steel plate, nickel layer and tin-plated
* operating temperature range: -55...+125°C

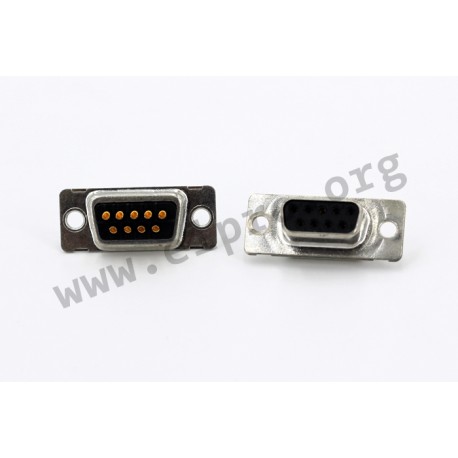

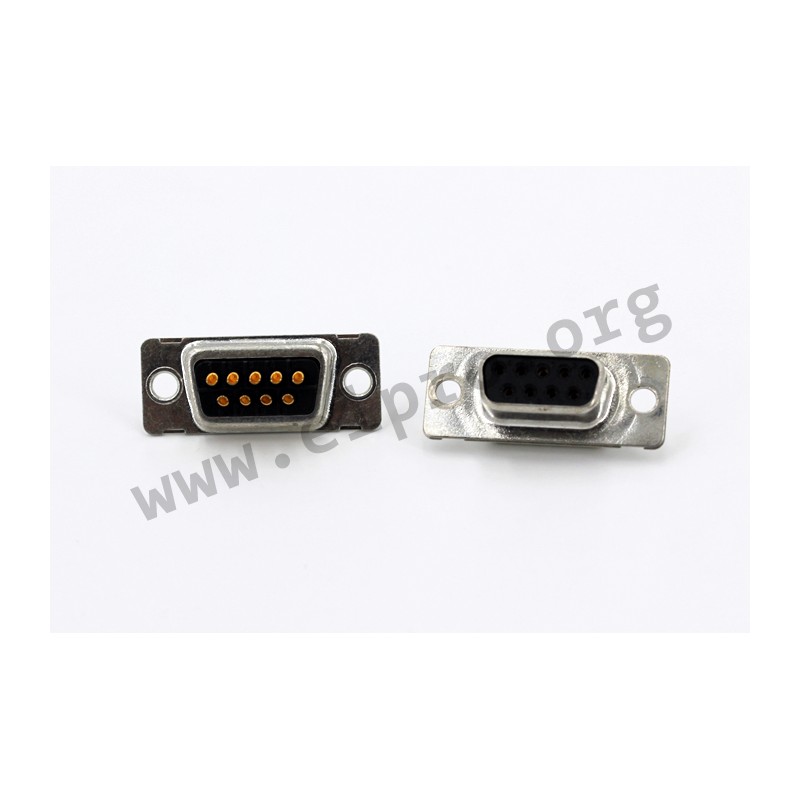

164A10019X, Conec socket strips, machined contacts, 164A series

DF 09 P-L

28193 DF 09 P-L 164A10019X.01 164A10019X.01 high-quality version. * DF_P-L: solder buckets * DF_P-P: solder pins * DF_P-A: 90° angled * machined contacts * insulating shell: polyester, glass fiber reinforced, self-extinguishing nach UL94V-0 * contacts: Cu-alloy * contact surface: gold over nickel * housing frame: steel plate, nickel layer and tin-plated * operating temperature range: -55...+125°C

Specifications

manufacturer
Manufacturer's name 164A10019X.01
Number of poles 9

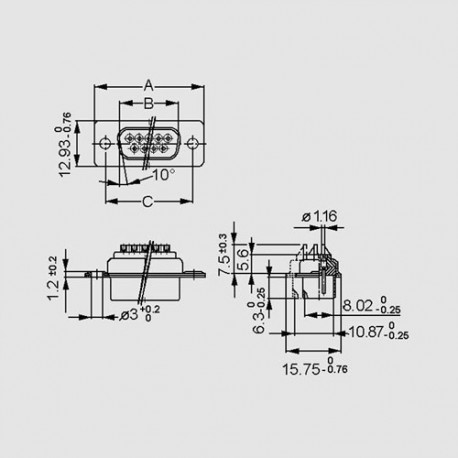

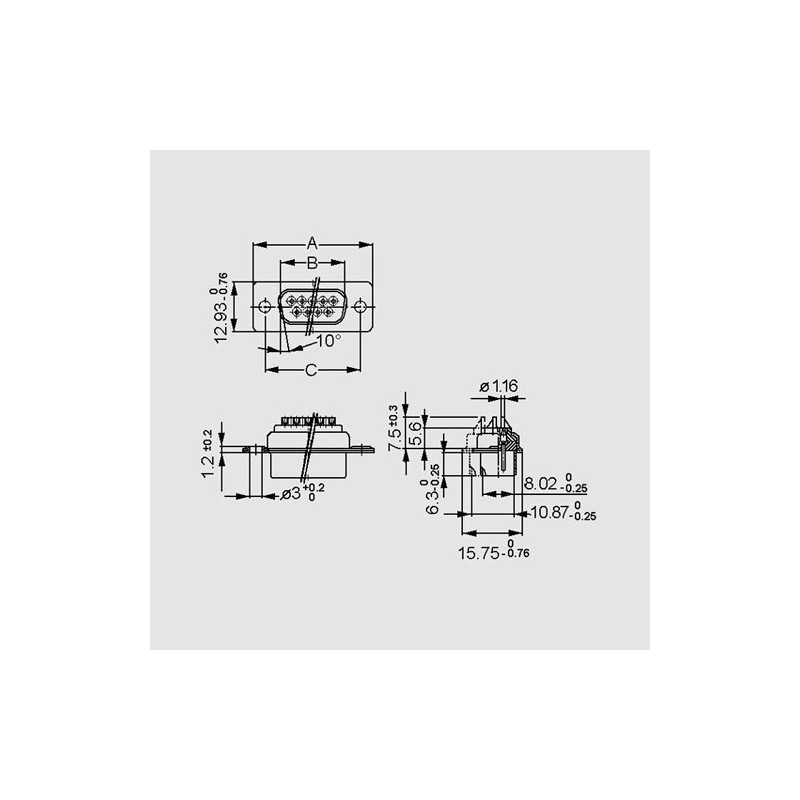

A [mm] 31,19
Width [mm] 16,46
C [mm] 25

Unit price

1,90 €

Stock: 2
Further delivery:
CW 36/2026

Minimum order quantity 1 to 2 units or multiples of 5 plus 0 to 2 .
