Manufacturers

17-10001

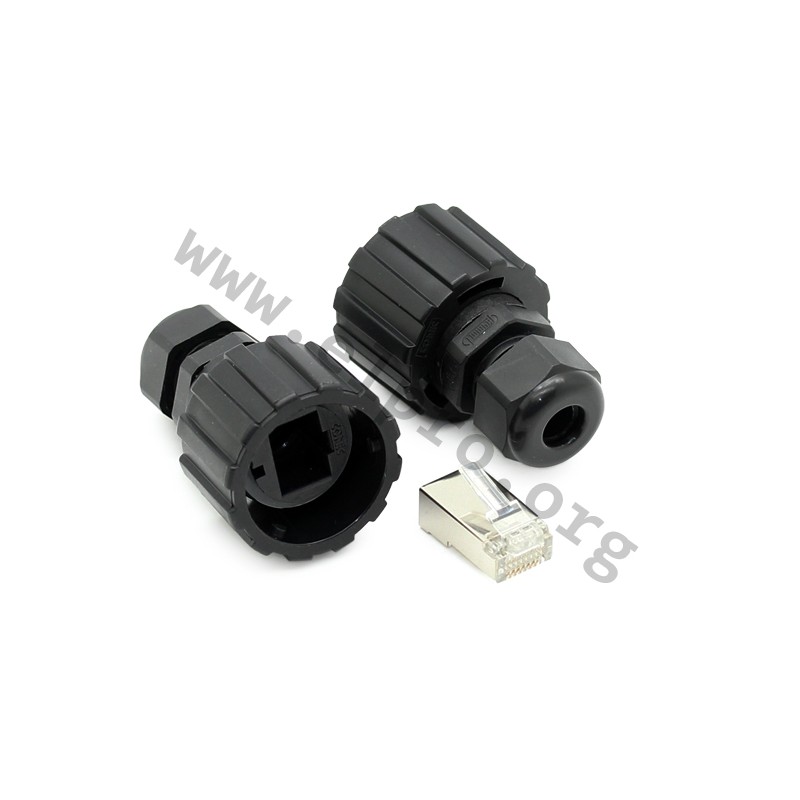

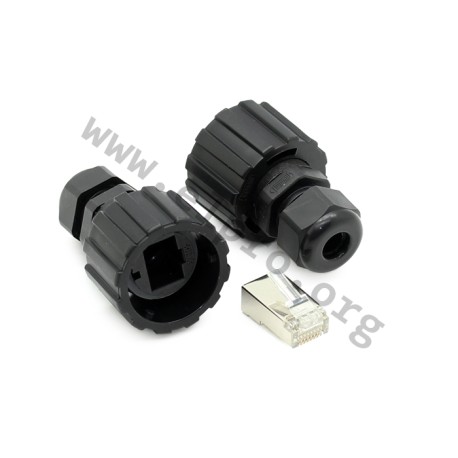

Conec RJ45 connector series 17-10 and 17-15

  • shielded RJ45 female cable connectors
  • with a bayonet lock and an IDC terminal
  • IP67 rated
  • Cat. 5e (17-10_) resp. Cat. 6a (17-15_)
  • suitable for cables with a diameter of Ø4,83 to Ø6,73mm
  • with a cable gland for Ø4 to 8mm (17-10001/17-150234) resp. Ø4,5 to 8mm (17-101794/17-150284)
  • rated voltage: 100V
  • rated current: 1,2A

17-10001

240367 17-10001 17-10001 Conec RJ45 connector series 17-10 and 17-15. shielded RJ45 female cable connectors with a bayonet lock and an IDC terminal IP67 rated Cat. 5e (17-10_) resp. Cat. 6a (17-15_) suitable for cables with a diameter of Ø4,83 to Ø6,73mm with a cable gland for Ø4 to 8mm (17-10001/17-150234) resp. Ø4,5 to 8mm (17-101794/17-150284) rated voltage: 100V rated current: 1,2A

Specifications

manufacturer
Manufacturer's name 17-10001
Design Cat. 5e
Data Sheet

Unit price

4,29 €

Stock: 5
Next incoming goods:
CW 23/2024
10 units


Further delivery:
CW 35/2024
