17-150284

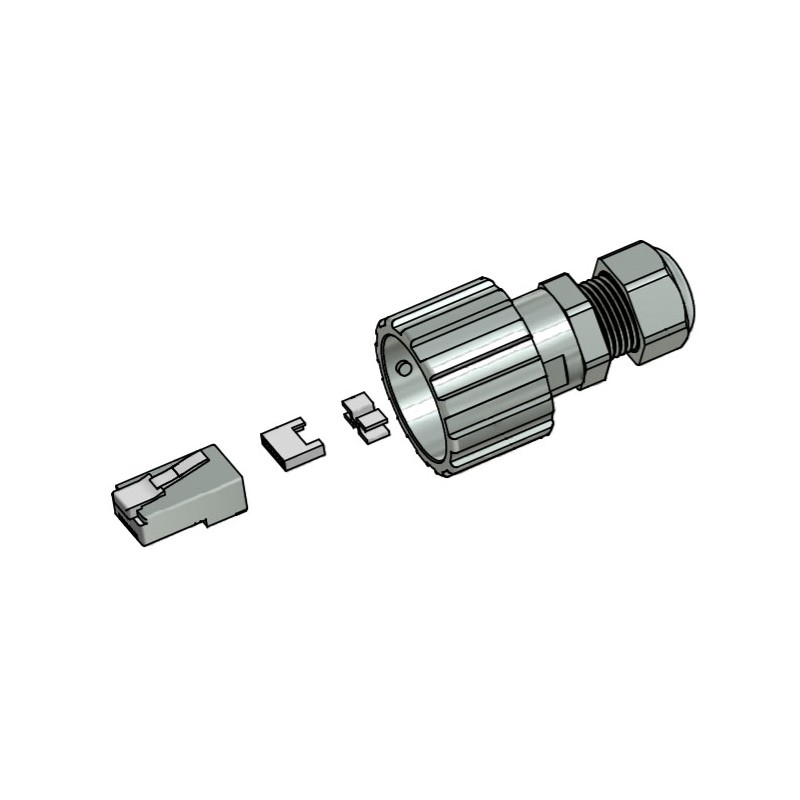

Conec RJ45 connector series 17-10 and 17-15

  • shielded RJ45 female cable connectors
  • with a bayonet lock and an IDC terminal
  • IP67 rated
  • Cat. 5e (17-10_) resp. Cat. 6a (17-15_)
  • suitable for cables with a diameter of Ø4,83 to Ø6,73mm
  • with a cable gland for Ø4 to 8mm (17-10001/17-150234) resp. Ø4,5 to 8mm (17-101794/17-150284)
  • rated voltage: 100V
  • rated current: 1,2A
17-150284, Conec RJ45 cable connectors, IP67, Cat5e and Cat 6a, IDC terminal, 17-10 and 17-15 series

17-150284

240370 17-150284 17-150284 Conec RJ45 connector series 17-10 and 17-15. shielded RJ45 female cable connectors with a bayonet lock and an IDC terminal IP67 rated Cat. 5e (17-10_) resp. Cat. 6a (17-15_) suitable for cables with a diameter of Ø4,83 to Ø6,73mm with a cable gland for Ø4 to 8mm (17-10001/17-150234) resp. Ø4,5 to 8mm (17-101794/17-150284) rated voltage: 100V rated current: 1,2A

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 17-150284
Design Cat. 6a
Data Sheet

Unit price

15,69 €

Stock: 10
