FL 13

female connectors, straight, FL by Conec

• DIN 41617
• pitch: 2.5mm
• series: FL
• by Conec
• with straight solder pins
• insulation body: polycarbonate (UL94V-1), glass filled
• contact material: copper alloy
• contact surface: hard silver
• mating and withdraw force
13-pole: 30N


• air and creepage (contact/mass): >1mm
• operating voltage: 250V AC
• test voltage (contact/masse): 1150Veff
• insulation group: A (VDE 0110)
• operating current (20°C): 4A
• contact resistance: <15mΩ
• insulation resistance: >1011Ω
• capacity: <1pF
• temperature range: -55...+125°C

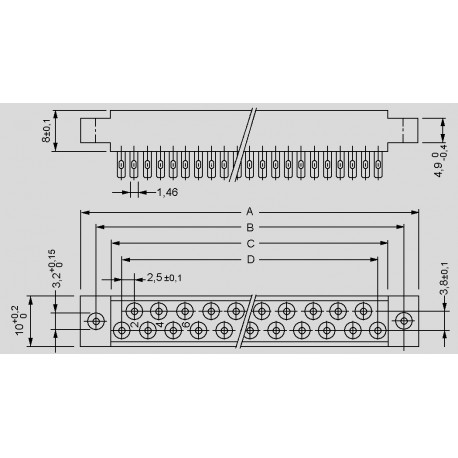

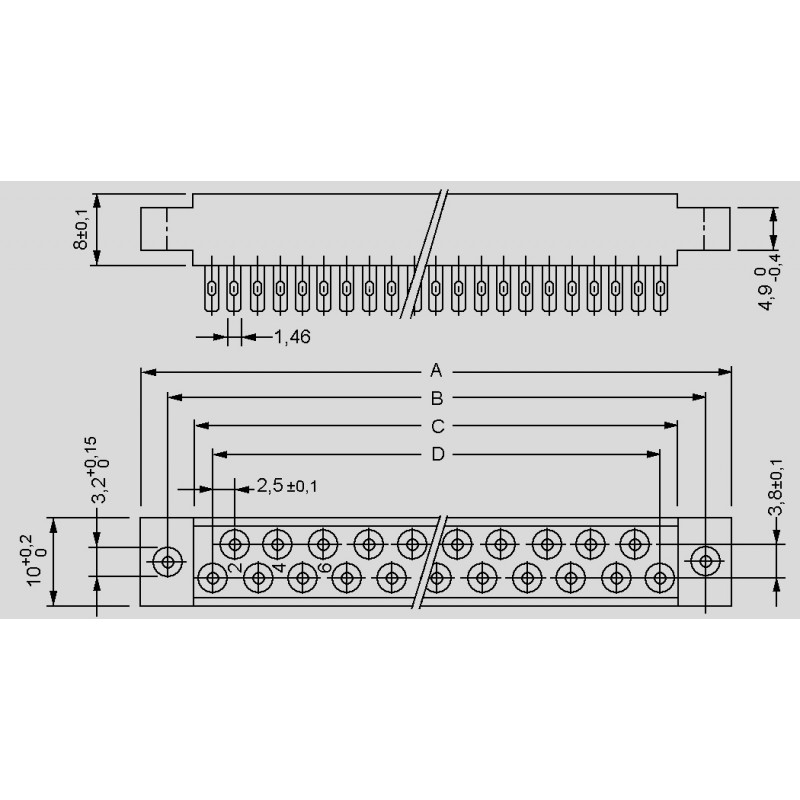

dimensions

FL 13

13625 FL 13 102E10059X 102E10059X female connectors, straight, FL by Conec. • DIN 41617• pitch: 2.5mm• series: FL• by Conec• with straight solder pins• insulation body: polycarbonate (UL94V-1), glass filled• contact material: copper alloy• contact surface: hard silver• mating and withdraw force13-pole: 30N • air and creepage (contact/mass): &gt;1mm• operating voltage: 250V AC• test voltage (contact/masse): 1150Veff• insulation group: A (VDE 0110)• operating current (20°C): 4A• contact resistance: &lt;15mΩ• insulation resistance: &gt;1011Ω• capacity: &lt;1pF• temperature range: -55...+125°C

Specifications

manufacturer
Manufacturer's name 102E10059X
Design solder pins
Number of poles 13
A [mm] 45,8
D [mm] 30
B [mm] 40
C [mm] 34,1
Data Sheet

Unit price

1,89 €

Stock: 781
Next incoming goods:
CW 19/2024
100 units

Further delivery:
CW 24/2024

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
