D2425PG

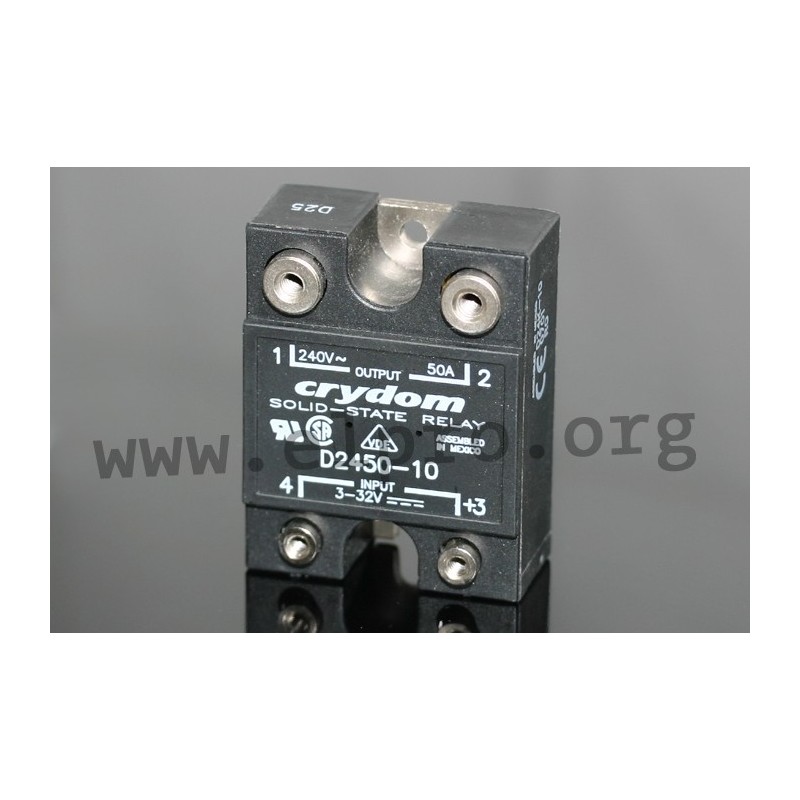

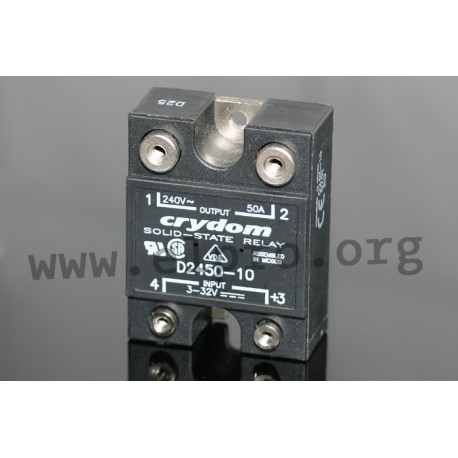

Sensata/Crydom solid state relay series CSD/CSW/A24/D24/MCPC

  • solid state relays in a hockey puck housing
  • suitable for AC voltages
  • with a thyristor output
  • random switching R-Version is recommended for inductive loads
  • the zero-voltage switching Z-version is recommended for capacitive and resistive loads
  • isolation voltage: 4kV
  • operating temperature: -40 to +85°C

D2425PG

238279 D2425PG D2425PG Sensata/Crydom solid state relay series CSD/CSW/A24/D24/MCPC. solid state relays in a hockey puck housing suitable for AC voltages with a thyristor output random switching R-Version is recommended for inductive loads the zero-voltage switching Z-version is recommended for capacitive and resistive loads isolation voltage: 4kV operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name D2425PG
Non repetitive surge peak on-state current [A] 250
Switch positions zero-voltage...
Max. off-state output voltage [V] 600
Forward current, max. [A] 25
Control voltage [V] 3...32
Zero-Voltage Switching [V] 24...280
Data Sheet

Unit price

53,99 €

Stock: 20
Further delivery:
CW 24/2024
