D1D 100

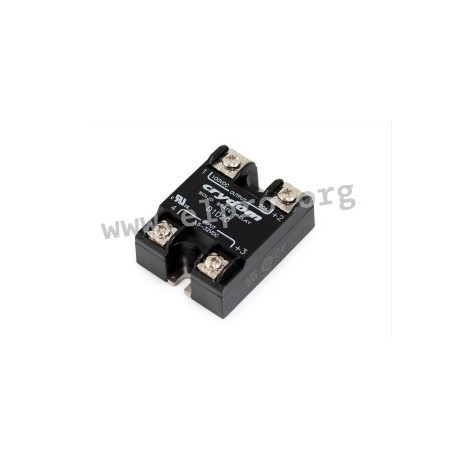

Sensata/Crydom solid state relay series D06D, D1D, D2D, D4D, and D5D

  • electronic solid state relays for DC voltages
  • in a Hockey-Puck housing
  • with a MOSFET output
  • isolation voltage: 3,75kV
  • operating temperature: -40 to +100°C
D1D100, Crydom solid state relays, 7 to 100A, 60 to 100V, MOSFET output, DC voltage, D06D, D1D, D2D, D4D, and D5D series

D1D 100

106238 D1D 100 D1D100 D1D100 Sensata/Crydom solid state relay series D06D, D1D, D2D, D4D, and D5D. electronic solid state relays for DC voltages in a Hockey-Puck housing with a MOSFET output  isolation voltage: 3,75kV operating temperature: -40 to +100°C

Specifications

manufacturer
Manufacturer's name D1D100
Case Hockey-Puck
Non repetitive surge peak on-state current [A] 330
Max. dark current [nA] 100
Control voltage [V] 3,5...32
Load voltage [V] 1...100
Insulation voltage [V] 3750
Data Sheet

Unit price

145,29 €

Stock: 0
Next incoming goods:
CW 03/2026
18 units

Further delivery:
CW 10/2026
