DC200D40

Sensata/Crydom solid state relay series DC

  • electronic solid state relays in a hockey puck housing
  • suitable for DC voltages
  • with a transistor (DC60_) resp. a MOSFET output
  • isolation voltage: 3,75 resp. 4kV (DC60_)
  • operating temperature: -30 to +80°C

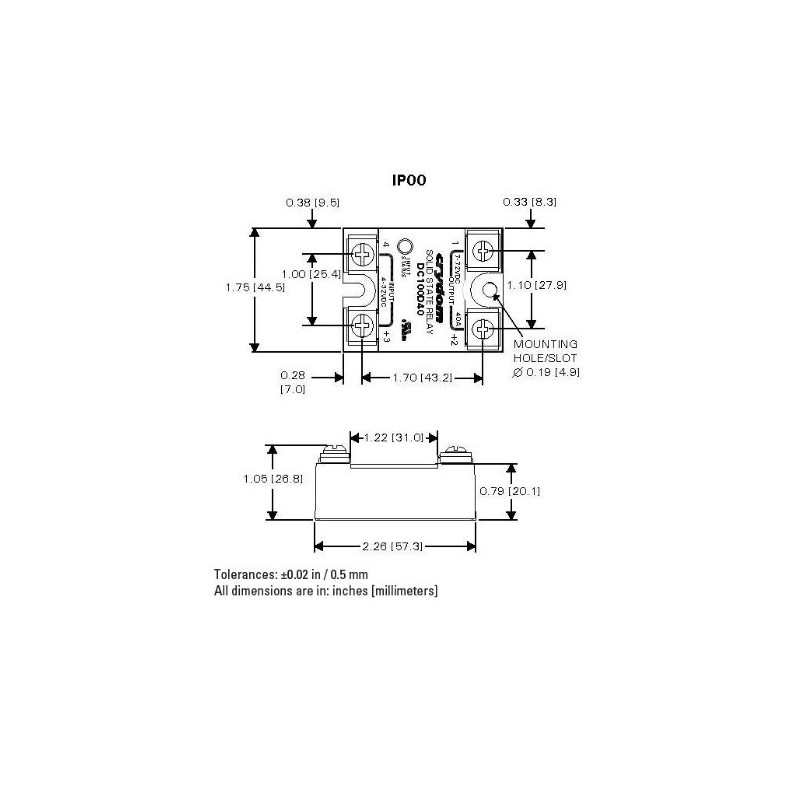

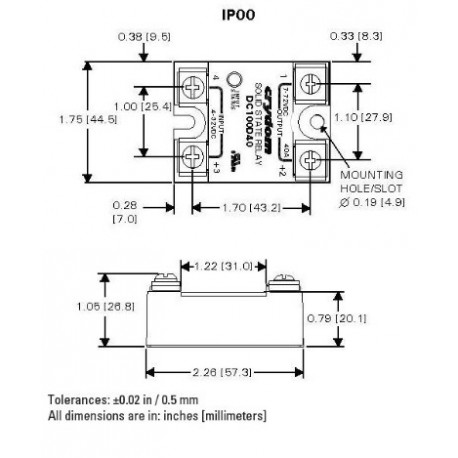

dimensions

DC200D40

39814 DC200D40 DC200D40 Sensata/Crydom solid state relay series DC. electronic solid state relays in a hockey puck housing suitable for DC voltages with a transistor (DC60_) resp. a MOSFET output isolation voltage: 3,75 resp. 4kV (DC60_) operating temperature: -30 to +80°C

Specifications

manufacturer
Manufacturer's name DC200D40
Non repetitive surge peak on-state current [A] 142
Max. off-state output voltage [V] 200
Forward current, max. [A] 40
Control voltage [V] 4...32
Load voltage [V] 1...150
Data Sheet

Unit price

124,29 €

Stock: 18
Further delivery:
CW 10/2026
