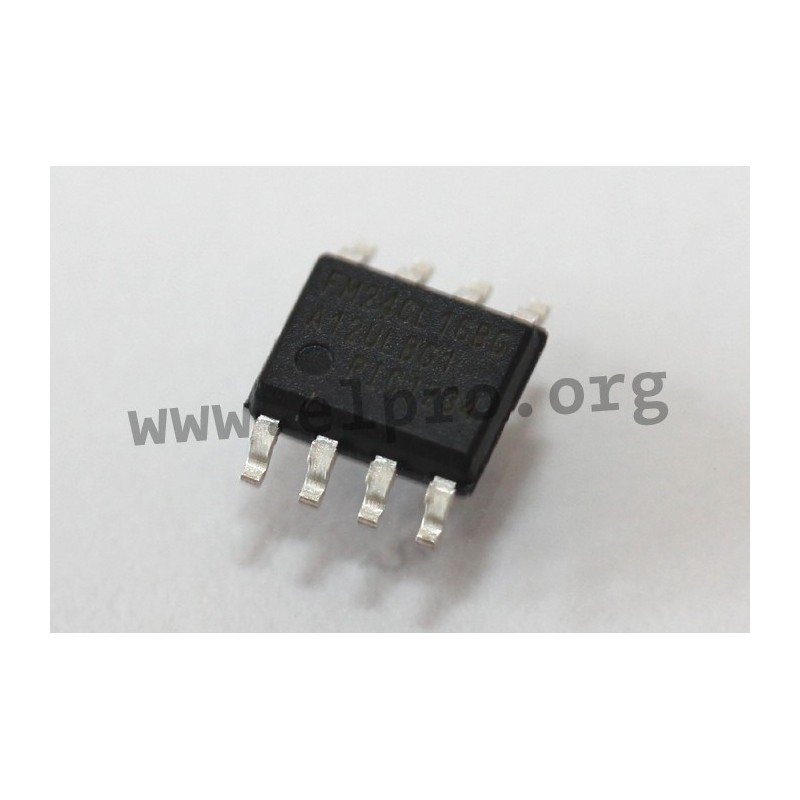

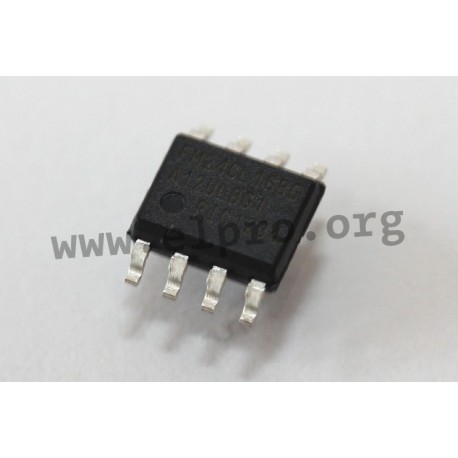

FM 24W256-GTR

Cypress FRAM series FM24

  • nonvolatile ferroelectric memory modules
  • replacement for serial I²C-EEPROMs
  • with up to 1014 write/read cycles and 38 years data retention (bei +75°C)
  • supply voltage: 2,7 to 3,6V resp. 2,7 to 5,5V
  • operating temperature: -40 to +85°C

FM 24W256-GTR

200633 FM 24W256-GTR FM24W256-GTR FM24W256-GTR Cypress FRAM series FM24. nonvolatile ferroelectric memory modules replacement for serial I²C-EEPROMs with up to 1014 write/read cycles and 38 years data retention (bei +75°C) supply voltage: 2,7 to 3,6V resp. 2,7 to 5,5V operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name FM24W256-GTR
Case SO8
Organisation 32kx8
Frequency [MHz] 1
Data Sheet

Unit price

2,39 €

Stock: 8130
Further delivery:
CW 20/2024

Minimum order quantity 5 units or
multiples of 5.
