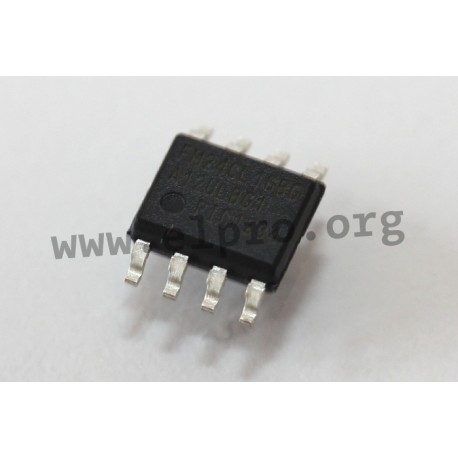

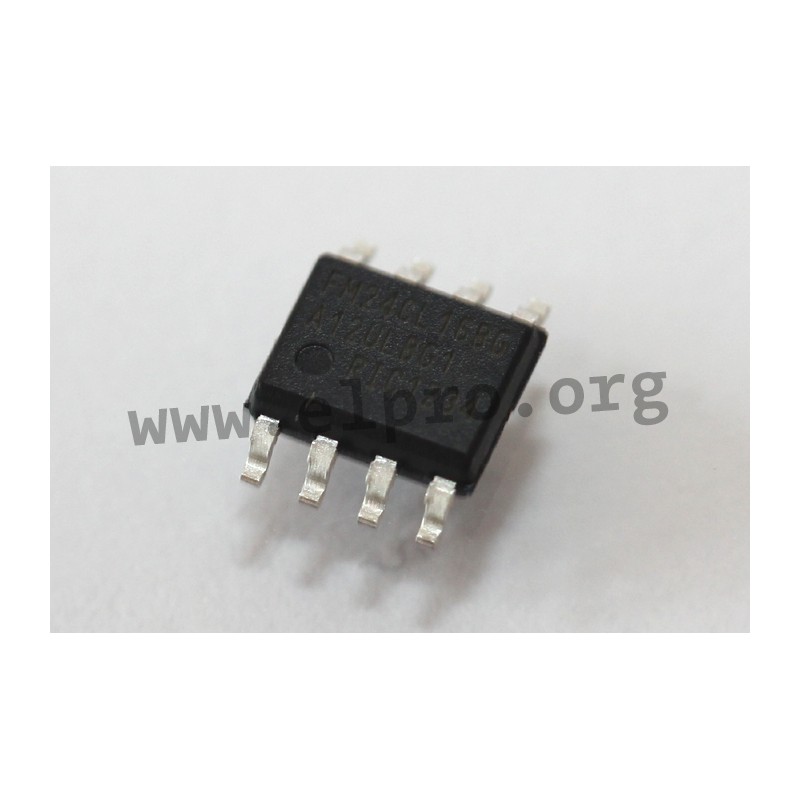

FM 25V05-G

Cypress FRAM series FM25

  • nonvolatile ferroelectric memory modules in a SO8 resp. TDFN8 housing (FN_-DG)
  • replacement for serial SPI-Flash or SPI-EEPROMs
  • suitable for up to 100 trillions (1014) read/write cycles
  • with up to 38 years data retention
  • hard- and software protection
  • supply voltage: 2 to 3,6V
  • operating temperature: -40 to +85°C

FM 25V05-G

106259 FM 25V05-G FM25V05-G FM25V05-G Cypress FRAM series FM25. nonvolatile ferroelectric memory modules in a SO8 resp. TDFN8 housing (FN_-DG) replacement for serial SPI-Flash or SPI-EEPROMs suitable for up to 100 trillions (1014) read/write cycles with up to 38 years data retention hard- and software protection supply voltage: 2 to 3,6V operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name FM25V05-G
Case SO8
Organisation 64kx8
Frequency [MHz] 40
Data Sheet

Unit price

5,59 €

Stock: 733
Further delivery:
CW 31/2024
