MINI-1CV-DALI

Dalcnet PWM dimmer series MINI

PWM dimming controllers in a plastic housing (IP20) with 350W (MINI-1AC-_) or 576W (MINI-1CV-_), a constant voltage (CV), a push-dimm function, a logarithmic or linear dimming curve (0,1 to 100%), fading and soft power on/off. These flickerfree devices are suitable for LED switching power supplies, have an adjustable PWM frequency from 30 to 4000Hz and can be configured through IOS as well as Android compatible apps. They are available with a Casambi (MINI-1CV-CASAMBI) or DALI interface (MINI-1CV-DALI) and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Dalcnet series: MINI-1CV, MINI-1CV-DALI, MINI-1CV-CASAMBI, MINI-1AC-DALI, and MINI-1AC-CASAMBI..

  • single output
  • output: 350 to 576W
  • input voltage: 12 to 48V DC
  • operating temperature: -10 to +60°C
  • dimensions: 44x57x25mm

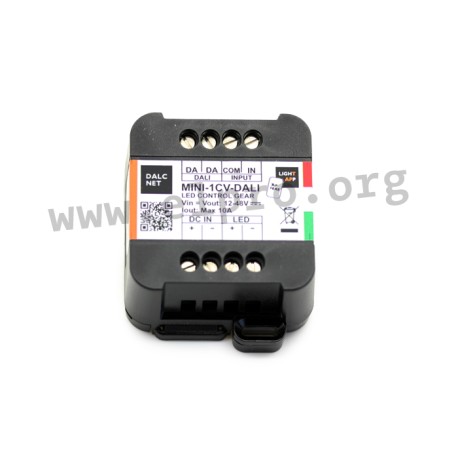

MINI-1CV-DALI, Dalcnet PWM dimmer, 576W, IP20, constant voltage, MINI series

MINI-1CV-DALI

242855 MINI-1CV-DALI MINI-1CV-DALI Dalcnet PWM dimmer series MINI. PWM dimming controllers in a plastic housing (IP20) with 350W (MINI-1AC-_) or 576W (MINI-1CV-_), a constant voltage (CV), a push-dimm function, a logarithmic or linear dimming curve (0,1 to 100%), fading and soft power on/off. These flickerfree devices are suitable for LED switching power supplies, have an adjustable PWM frequency from 30 to 4000Hz and can be configured through IOS as well as Android compatible apps. They are available with a Casambi (MINI-1CV-CASAMBI) or DALI interface (MINI-1CV-DALI) and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Dalcnet series: MINI-1CV, MINI-1CV-DALI, MINI-1CV-CASAMBI, MINI-1AC-DALI, and MINI-1AC-CASAMBI.. single output output: 350 to 576W input voltage: 12 to 48V DC operating temperature: -10 to +60°C dimensions: 44x57x25mm

Specifications

manufacturer
Manufacturer's name MINI-1CV-DALI
Output current [A] 10
Output power [W] 480
Data Sheet

Unit price

33,29 €

Volume discounts

Quantity Unit price
100 + 31,49 €
25 + 32,29 €

Stock: 43
Further delivery:
CW 37/2026
