DLX1224-4CV-DMX

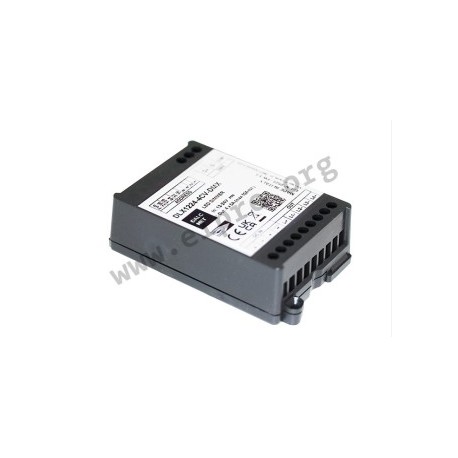

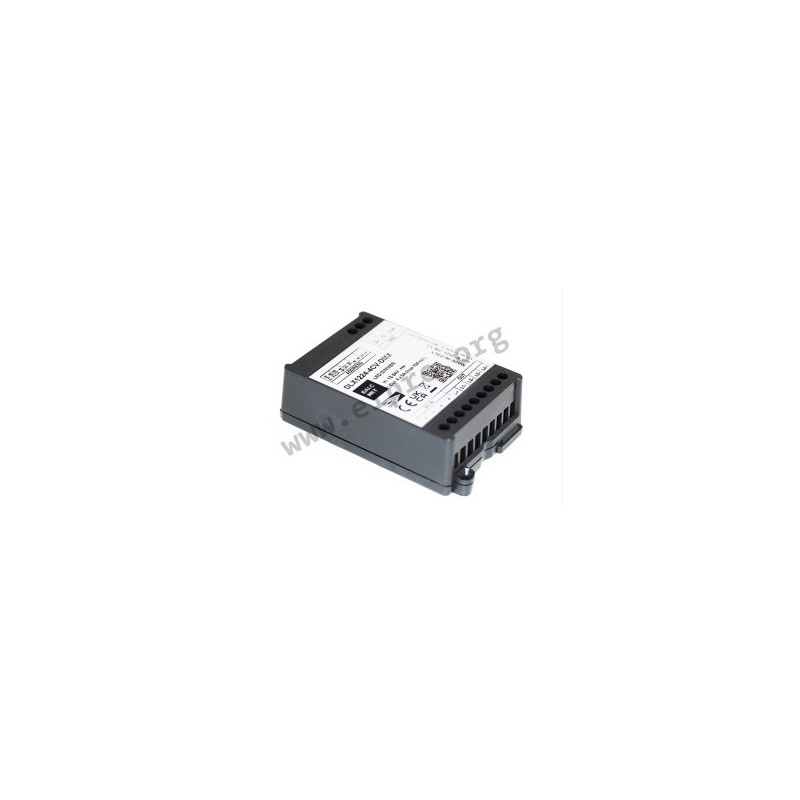

Dalcnet PWM dimmer series DLX

PWM dimming controllers in a plastic housing (IP20) with 240W, a constant voltage (CV), an optimized output curve and a soft on/off switching. These devices are dimmable in a range between 0,1 to 100%, have a PWM frequency of 250Hz and comply with EN61347-1 as well as EN55015. They have a DALI (DLX1224_-DALI) resp. a DMX interface (DLX1224_-DMX) as well as an efficiency of more than 95% and are suitable for LED drivers. We offer the following types of this Dalcnet series: DLX1224-4CV-DALI and DLX1224-4CV-DMX.

  • single output
  • output: 240W
  • input voltage: 12 to 24V DC
  • operating temperature: -10 to +40°C
  • dimensions: 88x54x26mm
  • weight: 56g
DLX1224-4CV-DMX, Dalcnet PWM dimmer, 240W, IP20, constant voltage, DLX series

DLX1224-4CV-DMX

242859 DLX1224-4CV-DMX DLX1224-4CV-DMX Dalcnet PWM dimmer series DLX. PWM dimming controllers in a plastic housing (IP20) with 240W, a constant voltage (CV), an optimized output curve and a soft on/off switching. These devices are dimmable in a range between 0,1 to 100%, have a PWM frequency of 250Hz and comply with EN61347-1 as well as EN55015. They have a DALI (DLX1224_-DALI) resp. a DMX interface (DLX1224_-DMX) as well as an efficiency of more than 95% and are suitable for LED drivers. We offer the following types of this Dalcnet series: DLX1224-4CV-DALI and DLX1224-4CV-DMX. single output output: 240W input voltage: 12 to 24V DC operating temperature: -10 to +40°C dimensions: 88x54x26mm weight: 56g

Specifications

manufacturer
Manufacturer's name DLX1224-4CV-DMX
Output current [A] 5
Output power [W] 240
Data Sheet

Unit price

32,49 €

Stock: 3
Further delivery:
CW 24/2024
