SLIM-2CV-CASAMBI

Dalcnet PWM dimmer series SLIM and LINE

PWM dimming controllers in a plastic housing (IP20) with 240W, a constant voltage (CV), a PWM frequency of 4000Hz, a soft on/off switching and a smooth dimming control. These devices have a push-dimm as well as a Casambi interface (Configurable through the Casambi app) and comply with EN61347-1, EN61347-2-13 as well as EN55015. They are suitable for LED drivers and have a linear or logarithmic dimming curve (selectable). We offer the following types of this Dalcnet series: SLIM-2CV-CASAMBI and LINE-5CV-CASAMBI.

  • 2 (SLIM-2CV_) resp. 5 channel output (LINE-5CV_)
  • output: 240W
  • input voltage: 12 to 48V DC
  • operating temperature: -10 to +60°C
  • dimensions SLIM_: 136x29x22mm
  • dimensions LINE_: 186x29x22mm
  • weight SLIM_: 53g
  • weight LINE_: 71g

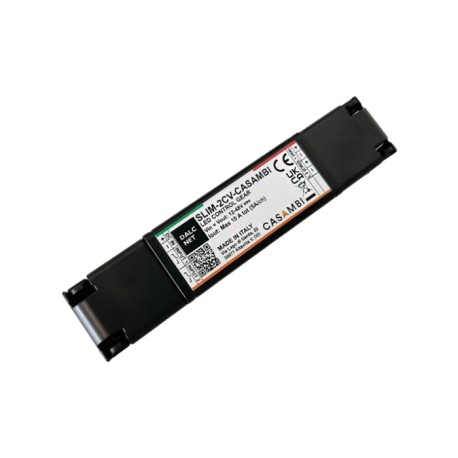

SLIM-2CV-CASAMBI, Dalcnet PWM dimmer, 240W, IP20, constant voltage, SLIM and LINE series

SLIM-2CV-CASAMBI

242865 SLIM-2CV-CASAMBI SLIM-2CV-CASAMBI Dalcnet PWM dimmer series SLIM and LINE. PWM dimming controllers in a plastic housing (IP20) with 240W, a constant voltage (CV), a PWM frequency of 4000Hz, a soft on/off switching and a smooth dimming control. These devices have a push-dimm as well as a Casambi interface (Configurable through the Casambi app) and comply with EN61347-1, EN61347-2-13 as well as EN55015. They are suitable for LED drivers and have a linear or logarithmic dimming curve (selectable). We offer the following types of this Dalcnet series: SLIM-2CV-CASAMBI and LINE-5CV-CASAMBI. 2 (SLIM-2CV_) resp. 5 channel output (LINE-5CV_) output: 240W input voltage: 12 to 48V DC operating temperature: -10 to +60°C dimensions SLIM_: 136x29x22mm dimensions LINE_: 186x29x22mm weight SLIM_: 53g weight LINE_: 71g

Specifications

manufacturer
Manufacturer's name SLIM-2CV-CASAMBI
Output current [A] 5
Output power [W] 240
Data Sheet

Unit price

84,59 €

Stock: 2
Further delivery:
CW 23/2024
