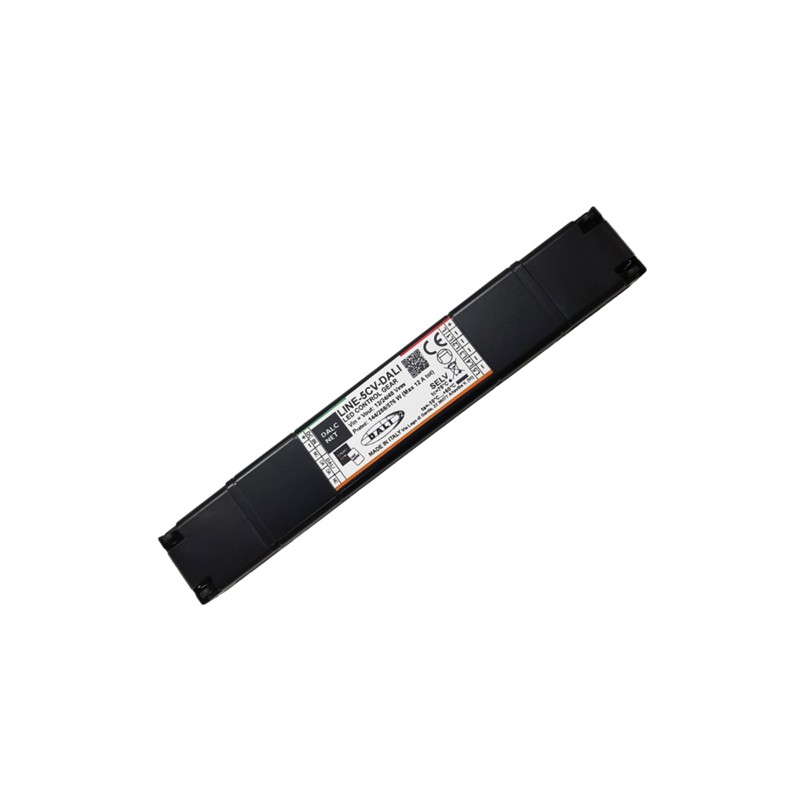

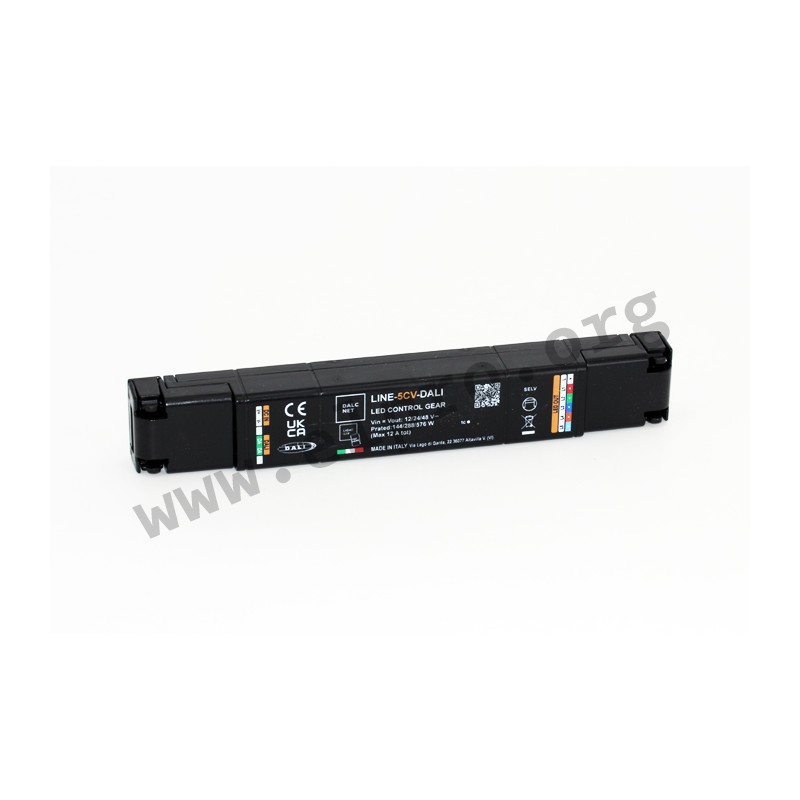

LINE-5CV-DALI

Dalcnet PWM dimmer series SLIM and LINE

PWM dimming controllers in a plastic housing (IP20) with a constant voltage (CV) and with various output powers. These devices have a push-dimm, DALI as well as a Casambi interface (Configurable through the Casambi app) and comply with EN61347-1, EN61347-2-13 as well as EN55015. They are suitable for LED drivers and have a linear or logarithmic dimming curve (selectable). We offer various types of this Dalcnet series.

  • 1- (SLIM-1CC-_), 2- (SLIM-2_), 4- (LINE-4CC-_) resp. 5 channel output (LINE-5CV-_)
  • output: 34,4 to 579W
  • input voltage: 12 to 48V DC
  • operating temperature: -10 to +60°C

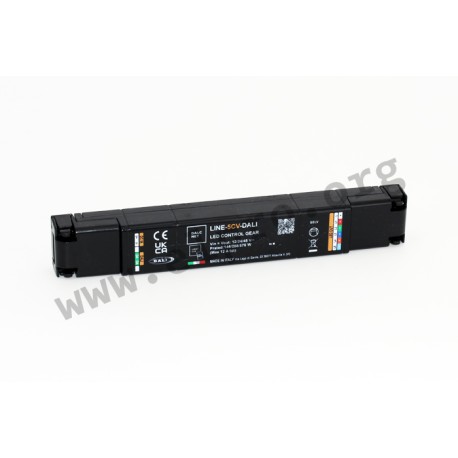

LINE-5CV-DALI, Dalcnet PWM dimmer, 34,4 bis 579W, IP20, constant voltage, SLIM and LINE series

LINE-5CV-DALI

259400 LINE-5CV-DALI LINE-5CV-DALI Dalcnet PWM dimmer series SLIM and LINE. PWM dimming controllers in a plastic housing (IP20) with a constant voltage (CV) and with various output powers. These devices have a push-dimm, DALI as well as a Casambi interface (Configurable through the Casambi app) and comply with EN61347-1, EN61347-2-13 as well as EN55015. They are suitable for LED drivers and have a linear or logarithmic dimming curve (selectable). We offer various types of this Dalcnet series. 1- (SLIM-1CC-_), 2- (SLIM-2_), 4- (LINE-4CC-_) resp. 5 channel output (LINE-5CV-_) output: 34,4 to 579W input voltage: 12 to 48V DC operating temperature: -10 to +60°C

Specifications

manufacturer
Manufacturer's name LINE-5CV-DALI
Output current [A] 5
Output power [W] 576
Data Sheet

Unit price

63,39 €

Volume discounts

Quantity Unit price
100 + 61,19 €
25 + 62,19 €

Stock: 0
Next incoming goods:
CW 26/2026
10 units

Further delivery:
CW 30/2026
