> Passive elements>Relays>Electromechanical relays>DIN rail sockets and modules for relays by Finder>99.80.3 6-220V

Manufacturers

99.80.3 6-220V

DIN rail sockets and accessories

• no reduction in the insulation class resp. the creepage and clearance by plastic retaining clips
• relays are easily replaced
• modules are placed easily and safely (proper polarity alignment) into the socket
• rated voltage: 250V AC
• rated current: 10A
• insulation resistance: 103MΩ
• insulation voltage: 2kV
• type of protection: IP20
• housing material: PA66
• contacts: CuZn33, nickel-plated

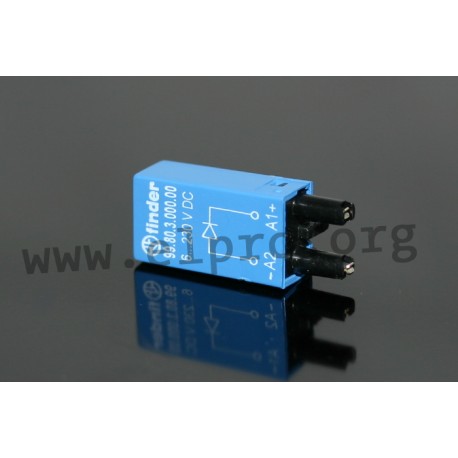

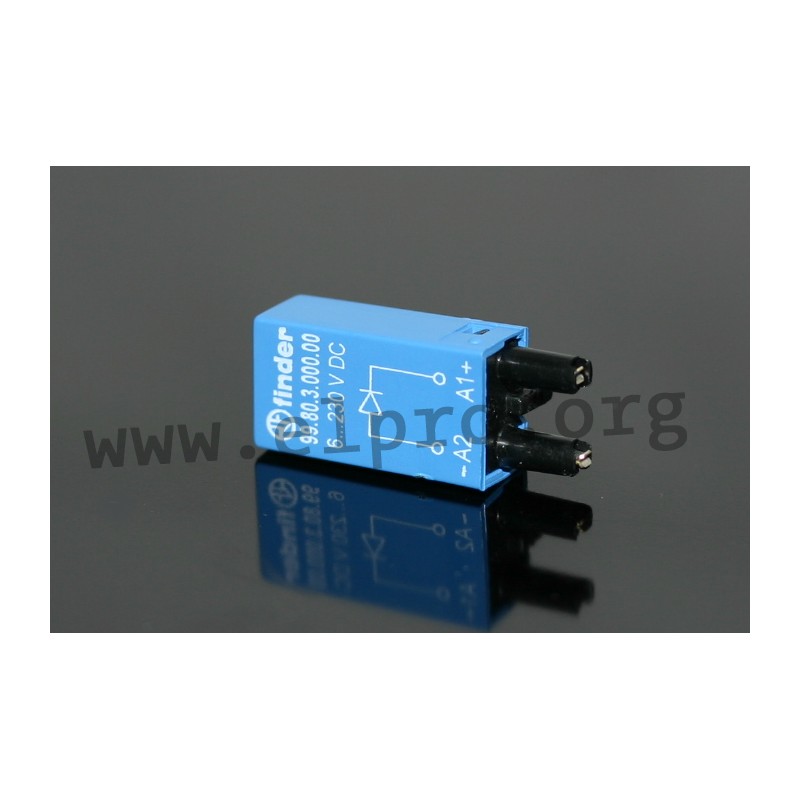

99.80 display module for sockets 95.83.3, 95.85.3, 95.95.3
• LED colour:: green
• module colour: blue
• diode module (6...220V DC)

99.80.3 6-220V

99.80.3 6-220V

11921 99.80.3 6-220V 99.80.3.000.00 99.80.3.000.00 DIN rail sockets and accessories. • no reduction in the insulation class resp. the creepage and clearance by plastic retaining clips• relays are easily replaced• modules are placed easily and safely (proper polarity alignment) into the socket• rated voltage: 250V AC• rated current: 10A• insulation resistance: 103MΩ• insulation voltage: 2kV• type of protection: IP20• housing material: PA66• contacts: CuZn33, nickel-plated99.80 display module for sockets 95.83.3, 95.85.3, 95.95.3• LED colour:: green• module colour: blue• diode module (6...220V DC)

Specifications

manufacturer
Manufacturer's name 99.80.3.000.00
Data Sheet

Unit price

2,79 €

Stock: 7
Next incoming goods:
CW 28/2024
10 units

Further delivery:
CW 35/2024

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
