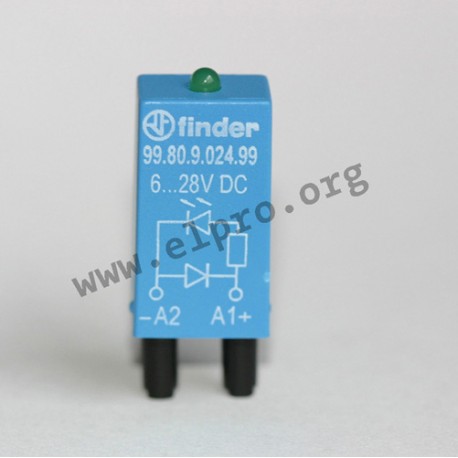

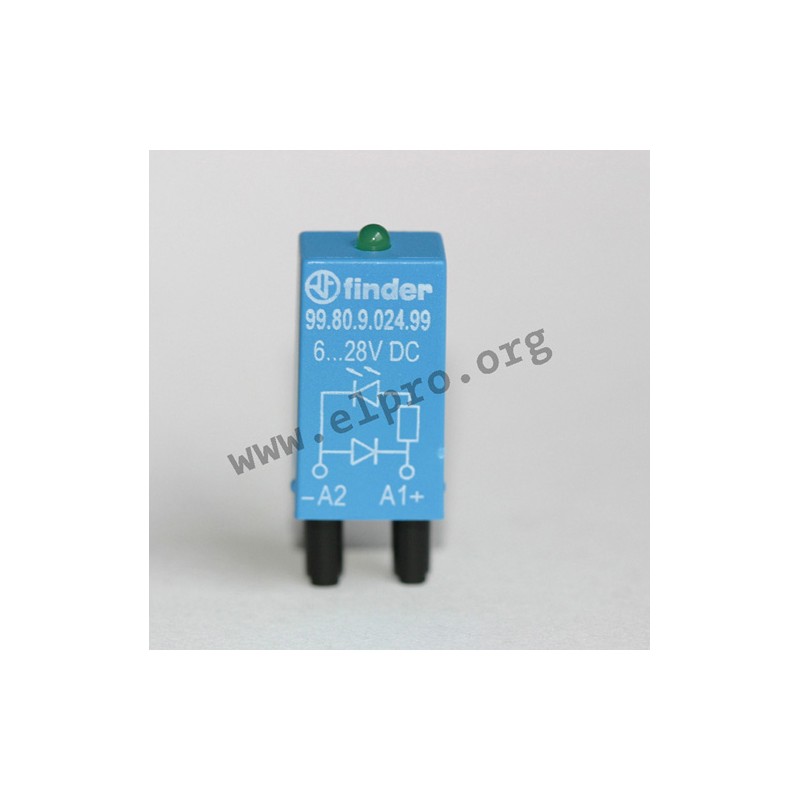

99.80.9 6-24V

DIN rail sockets and accessories

• no reduction in the insulation class resp. the creepage and clearance by plastic retaining clips
• relays are easily replaced
• modules are placed easily and safely (proper polarity alignment) into the socket
• rated voltage: 250V AC
• rated current: 10A
• insulation resistance: 103MΩ
• insulation voltage: 2kV
• type of protection: IP20
• housing material: PA66
• contacts: CuZn33, nickel-plated

• LED module with diode (6...24V DC)

99.80.9 6-24V

99.80.9 6-24V

11922 99.80.9 6-24V 99.80.9.024.99 99.80.9.024.99 DIN rail sockets and accessories. • no reduction in the insulation class resp. the creepage and clearance by plastic retaining clips• relays are easily replaced• modules are placed easily and safely (proper polarity alignment) into the socket• rated voltage: 250V AC• rated current: 10A• insulation resistance: 103MΩ• insulation voltage: 2kV• type of protection: IP20• housing material: PA66• contacts: CuZn33, nickel-plated• LED module with diode (6...24V DC)

Specifications

manufacturer
Manufacturer's name 99.80.9.024.99
Data Sheet

Unit price

3,99 €

Stock: 114
Further delivery:
CW 36/2024

Minimum order quantity 1 to 4 units or multiples of 10 plus 0 to 4 .
